WR-34 Coaxial Highpass Filter

18 to 33 GHz, 40 dB Rejection from DC to 15 GHz
SKU:SCF-18315340-34KFKF-H1
Availability:1 Week ARO

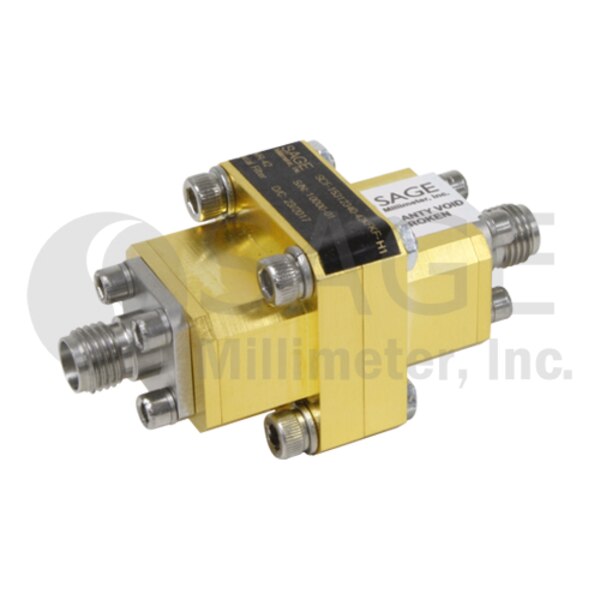

SCF-18315340-34KFKF-H1 is a coaxial highpass filter with a passband frequency from 18 to 33 GHz. The filter rejects frequencies from DC to 15 GHz and provides a nominal insertion loss of 1.2 dB in its passband with low ripple. Typical rejection for this model is 40 dB. The RF ports offer female 2.92 mm connectors. However, the models with other connector type, such as male connector, are also available under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 9$640.00
10 - 24$576.00
25 - 49$518.40

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Passband Frequency18 GHz
Maximum Passband Frequency33 GHz
Minimum Rejection FrequencyDC
Maximum Rejection Frequency15 GHz
Rejection40 dB
Insertion Loss1.2 dB
VSWR1.5
Impedance50 Ohms
Power Handling50 W
RF Ports2.92 mm (F)
