K-Band DPDT Motorized Switch

18 to 26.5 GHz, 60 dB Isolation, WR-42 Waveguide
SKU:SWJ-42-TS
Availability:8 to 10 Weeks ARO

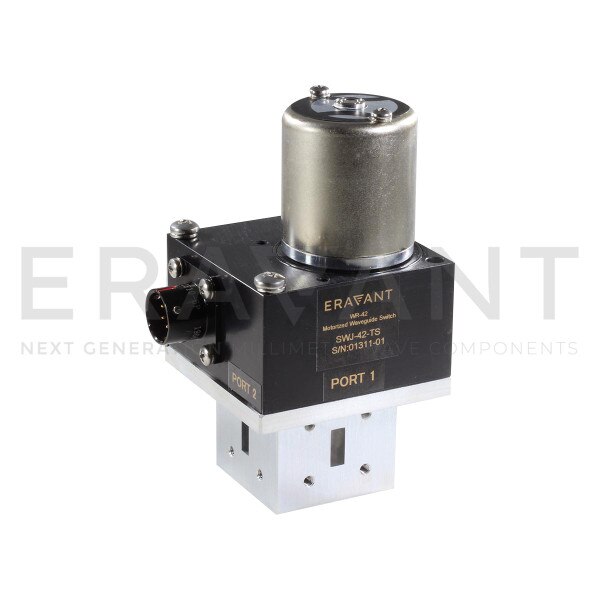

SWJ-42-TS is a K band motorized double pole, double throw (DPDT) transfer switch with a TTL driver that covers the frequency range of 18 to 26.5 GHz. The switch has four ports and the switching is E plane. The switch is a bi-directional device which allows each port to be switched on and off between the adjacent ports. The insertion loss of the switch is 0.10 dB typical and the minimum isolation is 60 dB. The switch has WR-42 waveguides with UG-595/U flanges. The bias and control signal connector is MS3112E-10-6P type.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 2$4,000.00
3 - 4$3,800.00
5 +$3,610.00

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency18 GHz
Maximum Frequency26.5 GHz
Insertion Loss0.10 dB
Isolation60 dB
Return Loss26 dB
Bias±28 VDC/250 mA
Switching Speed125 mS
Power Handling100 W (CW)
RF PortsWR-42 Waveguide
