High Power Full Band Junction Isolator

18 to 26.5 GHz, 20 dB Isolation, WR-42 Waveguide, K-Band
SKU:SNF-42-I5-H
Availability:IN STOCKPlease contact us if you need more units than what is available online.

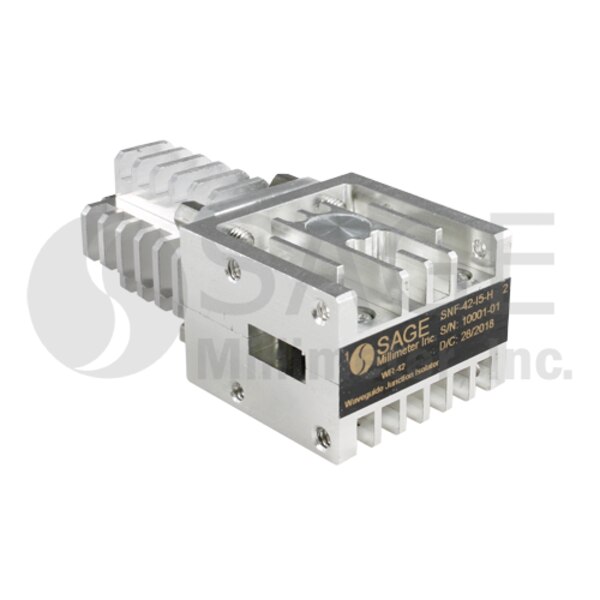

SNF-42-I5-H is a K band, waveguide junction isolator that covers the frequency range of 18 to 26.5 GHz. The full band isolator is designed and manufactured to provide a low insertion loss of 0.3 dB typical with good flatness. Compared to a Faraday isolator, it offers a much shorter insertion length for system integration. The isolator also offers a moderate isolation of 20 dB. The input and output ports are WR-42 waveguides with UG-595/U flanges.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency18 GHz
Maximum Frequency26.5 GHz
Insertion Loss0.3 dB
Isolation20 dB
Return Loss20 dB
Forward Power Handling25 W Max
Reverse Power Handling5 W Max
RF PortWR-42 Waveguide
Device TypeIsolator
