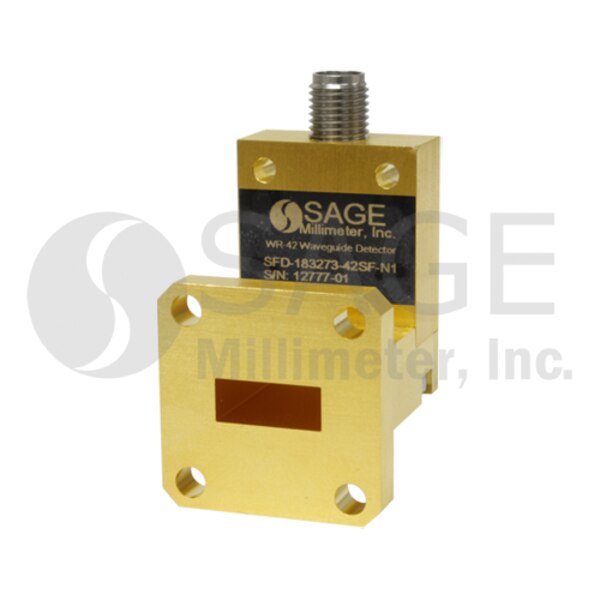

K-Band Negative Amplitude Detector

18 to 26.5 GHz, 1300 mV/mW Sensitivity, WR-42 Waveguide
SKU:SFD-183273-42SF-N1
Availability:1 Week ARO
SFD-183273-42SF-N1 is a K Band amplitude detector that can be used for full or narrow band applications. The detector is zero biased and intended for small signal detection purposes. With a distinct circuitry design and careful diode selection, the detector exhibits high sensitivity and extremely flat output characteristics across the full waveguide operating bandwidth. The detector is designed to have a 10 MHz video bandwidth and a 1 milliohm video output impedance. The minimum detectable signal level is approximately -50 dBm.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 4$1,200.00
5 - 9$1,080.00
10 +$972.00

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency18 GHz
Maximum Frequency26.5 GHz
Sensitivity1300 mV/mW
Sensitivity Flatness±2.0 dB
RF Input Power-20 dBm
Video Bandwidth10 MHz
Output Voltage PolarityNegative
RF PortWR-42 Waveguide
DC PortSMA (F)
