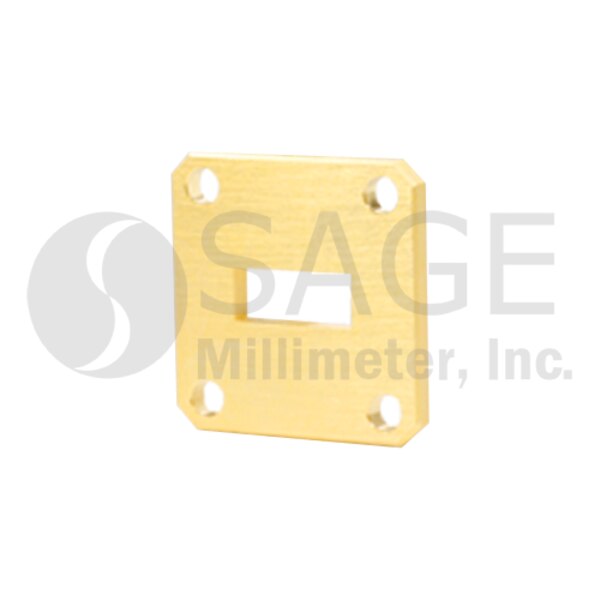

WR-42 Waveguide Shim

18 to 26.5 GHz, 0.168" (L) Insertion Length, 168 Mils
SKU:SWI-42168-SB
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SWI-42168-SB is a 0.168" thick, 1/4 wavelength, instrumentation grade WR-42 Band waveguide spacer (shim) with WR-42 window and UG-595/U square flange. The spacer is manufactured with a precision machining process to ensure high quality and ruggedness. The spacer is offered to cover the frequency range of 18 to 26.5 GHz.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency18 GHz
Maximum Frequency26.5 GHz
Insertion Length0.168" (L)
Mils168
WaveguideWR-42 Waveguide
