SMA Coaxial Bandpass Filter

18 to 26.1 GHz, 40 dB Rejection
SKU:SCF-22308340-SFSF-B3
Availability:IN STOCKPlease contact us if you need more units than what is available online.

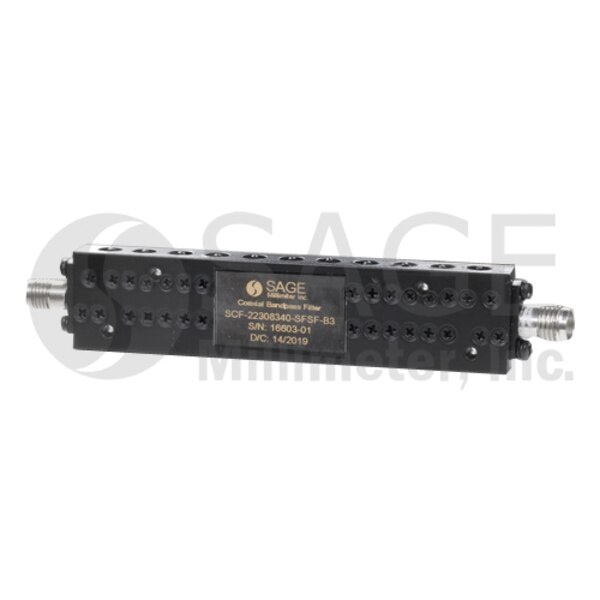

SCF-22308340-SFSF-B3 is a coaxial bandpass filter with a passband frequency of 18.0 to 26.1 GHz. The typical insertion loss of the bandpass filter is 3.0 dB and the passband ripple is ±0.75 dB. The rejection frequencies are 16.5 GHz or less and 26.5 to 30.0 GHz. The typical rejection is 40 dB and the minimum passband return loss of the filter is 10 dB. The RF connectors of the the filter are SMA Female connectors. Other configurations are available under different model numbers.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 4$1,700.00
5 - 9$1,530.00
10 +$1,377.00

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Passband Frequency18 GHz
Maximum Passband Frequency26.1 GHz
Low Side Rejection40 dB
High Side Rejection40 dB
Return Loss10 dB
Insertion Loss3 dB
Impedance50 Ohms
RF PortsSMA (F)
