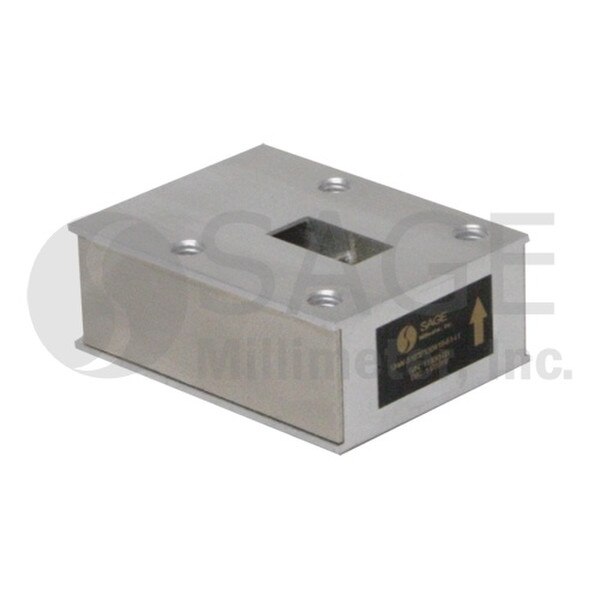

WR-51 Junction Isolator

18 to 21 GHz, 18 dB Isolation, WR-51 Waveguide
SKU:SNW-1832130418-51-I1
Availability:4 to 6 Weeks ARO
SNW-1832130418-51-I1 is a WR-51 waveguide junction isolator that covers the frequency range of 18 to 21 GHz. Compared with a Faraday isolator, the waveguide junction isolator offers a lower insertion loss of 0.4 dB maximum and a much shorter insertion length for system integration. As a tradeoff, the waveguide junction isolator only offers a minimum isolation of 18 dB. The input and output ports are WR-51 waveguides with UG-419/U flanges.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 24$275.00
25 - 49$247.50
50 +$222.75

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency18 GHz
Maximum Frequency21 GHz
Insertion Loss0.4 dB
Isolation20 dB
VSWR1.4
Forward Power Handling5 W (CW)
Reverse Power Handling2 W (CW)
RF PortWR-51 Waveguide
Device TypeIsolator
