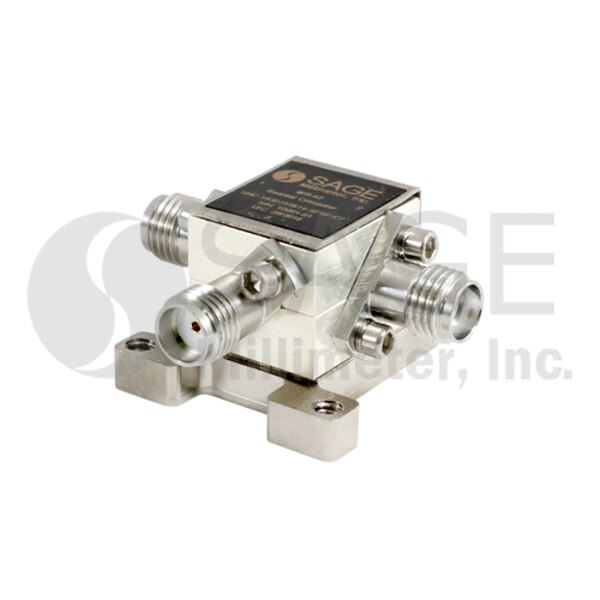

K-Band Coax Circulator

18.0 to 26.5 GHz, 14 dB Isolation, SMA (F)
SKU:SNC-1832731614-SFSFSF-C7
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SNC-1832731614-SFSFSF-C7 is a K band coaxial circulator that covers the frequency range of 18 GHz to 26.5 GHz. The wide band circulator is designed and manufactured to provide an insertion loss of 1.6 dB typical with good flatness. The circulator also offers a moderate isolation of 14 dB and a high-power handling for system integration. The ports are SMA (F) connectors. The RF interface of other type of connector combinations are also offered under different model numbers.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 24$495.00
25 - 49$445.50
50 +$400.95

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency18.0 GHz
Maximum Frequency26.5 GHz
Insertion Loss1.6 dB
Isolation14 dB
Return Loss14 dB
Forward Power Handling10 W
Impedance50 Ohms
RF Input and OutputSMA (F) Connectors
