WR-04 Faraday Isolator

170 to 260 GHz, 30 dB Isolation, 6.0 dB Insertion Loss, WR-04 Waveguide

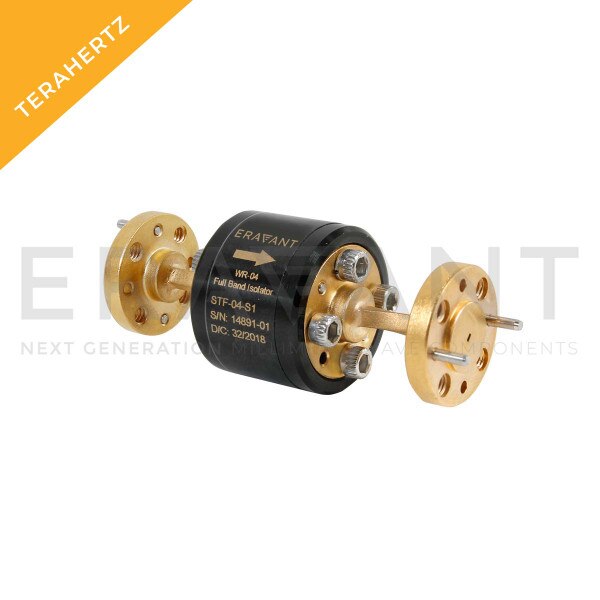

STF-04-S1 is a full band Faraday isolator that operates from 170 to 260 GHz. The Faraday isolator is constructed with a longitudinal, magnetized ferrite rod that causes a Faraday rotation of the incoming RF signal. The Faraday isolator offers 30 dB typical isolation and 6.0 dB nominal insertion loss. The return loss of the isolator is 15 dB. The input and output ports are WR-04 waveguides with UG-387/U-M flanges.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency170 GHz
Maximum Frequency260 GHz
Insertion Loss6 dB
Isolation30 dB
Return Loss15 dB
Power Handling0.1 W
RF PortWR-04 Waveguide
