WR-28 Coaxial Rectangular Horn Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0400GAIN-AA.
A 2D pattern measurement test is offered under service number FTA-0400PATT-AA.

CLICK HERE to read more about our antenna measurement capabilities.

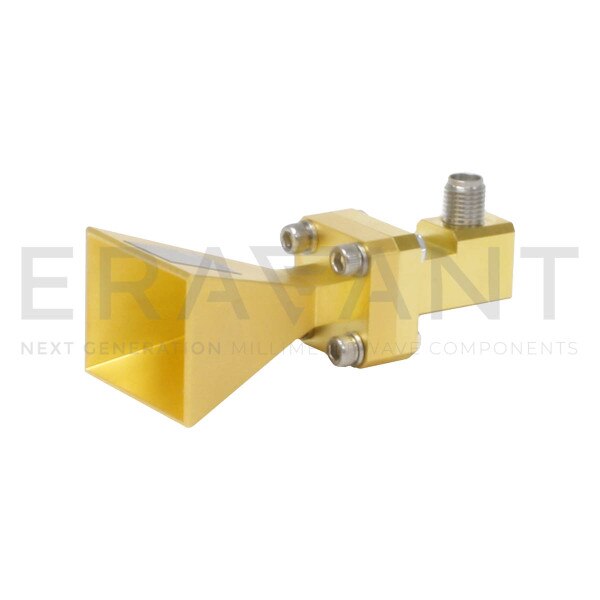

SAR-1725-28KF-R2 is a Ka-band pyramidal horn antenna with a right angle (90°) 2.92 mm (F) coax connector to cover the frequency range of 26.5 GHz to 40 GHz. The antenna offers 17 dBi nominal gain and a typical half power beamwidth of 23 degrees on the E-plane and 24 degrees on the H-plane. The antenna supports linear polarized waveforms. End launch (180°) 2.92 mm (F) connector configuration is available under model SAR-1725-28KF-E2.
