WR-28 Waveguide Rectangular Horn Antenna

17 dBi Gain, 26.5 to 40 GHz, Ka-Band
SKU:SAR-1725-28-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.

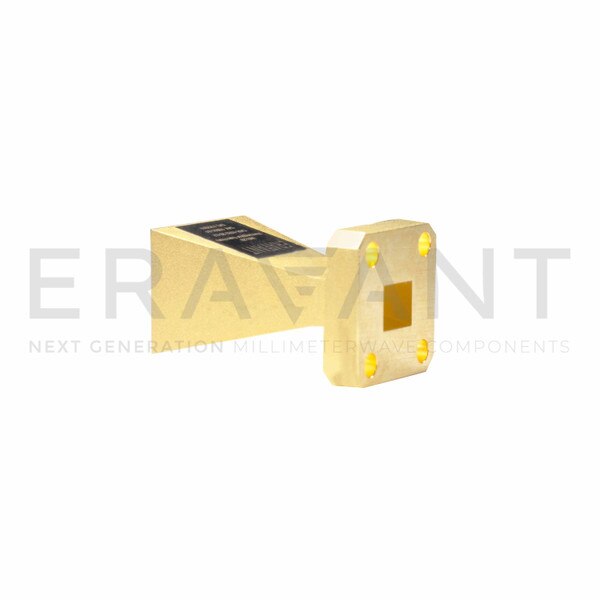

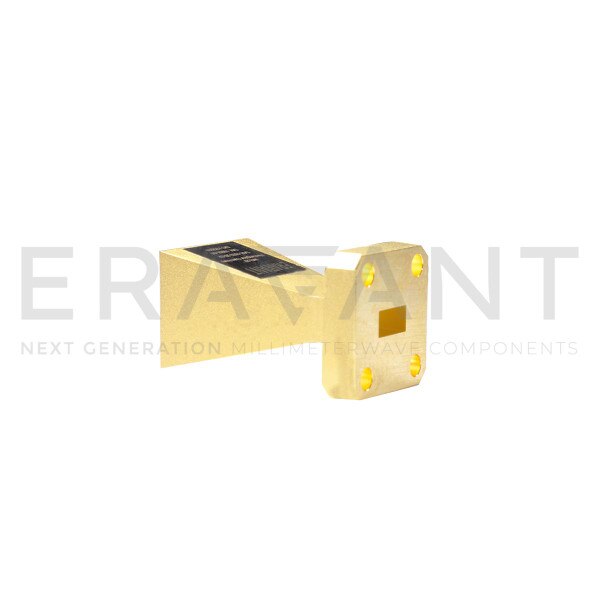

SAR-1725-28-S2 is a Ka-band pyramidal horn antenna that operates from 26.5 to 40 GHz. The antenna offers 17 dBi nominal gain and a typical half power beamwidth of 23 degrees on the E-plane and 24 degrees on the H-plane. The antenna supports linear polarized waveforms. The input of this antenna is a WR-28 waveguide with UG-599/U flange.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 9$720.00
10 - 24$648.00
25 +$583.20

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency26.5 GHz
Maximum Frequency40 GHz
Gain17 dBi
3 dB Beamwidth, E-Plane23°
3 dB Beamwidth, H-Plane24°
Return Loss23 dB
Antenna PortWR-28 Waveguide
