WR-10 Waveguide Rectangular Horn Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-WR10GAIN-AA.
A 2D pattern measurement test is offered under service number FTA-WR10PATT-AA.

CLICK HERE to read more about our antenna measurement capabilities.

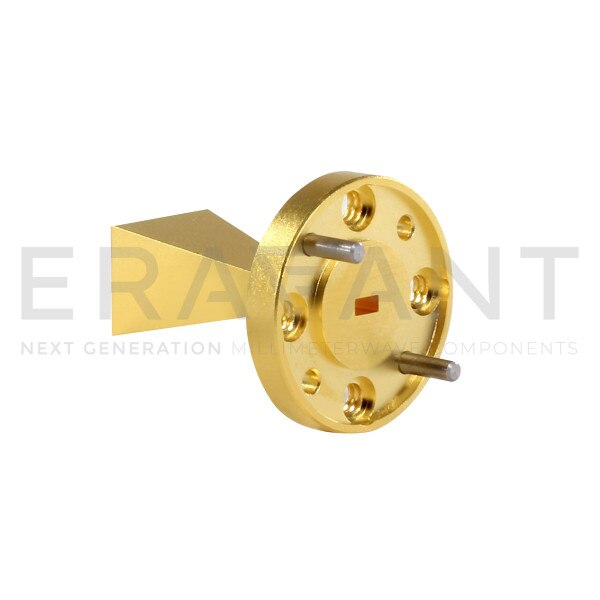

SAR-1725-10-S2 is a W-band pyramidal horn antenna that operates from 75 GHz to 110 GHz. The antenna offers a nominal 17 dBi gain and a typical half power beamwidth of 24 degrees on the E-plane and 25 degrees on the H-plane. The antenna supports linear polarized waveforms. The input of this antenna is a WR-10 waveguide with UG-387/U-M anti-cocking flange.
