U-Band Scalar Feed Horn Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0670GAIN-AA.
A 2D pattern measurement test is offered under service number FTA-0670PATT-AA.

CLICK HERE to read more about our antenna measurement capabilities.

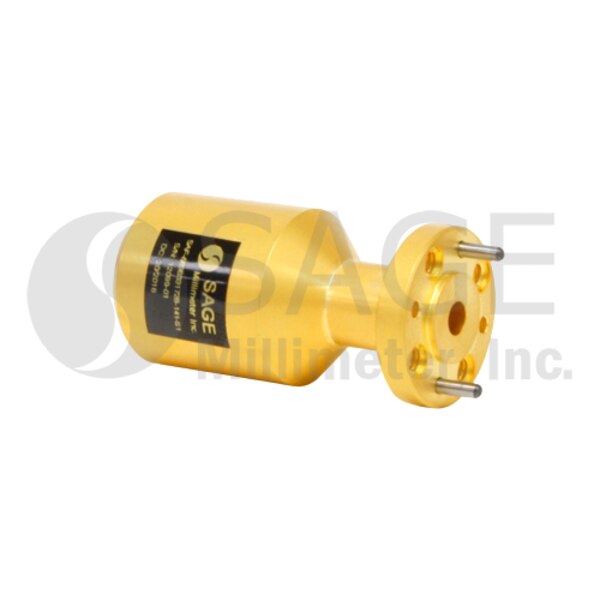

SAF-4036031725-219-S1 is a WR-19 scalar feed horn antenna that operates from 40 to 60 GHz. At center frequency, the horn antenna exhibits 17 dBi nominal gain and a typical half power beamwidth of 25 degrees. The antenna has a return loss of 20 dB, and -25 dB side lobe levels on the E-Plane and H-Plane. The antenna is equipped with a 0.219" diameter circular waveguide that supports both linear and circular polarization. A rectangular waveguide port configuration that only supports linear polarization is available under a different model number.
