K-Band Microstrip Patch Array Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0400GAIN-PA.
A 2D pattern measurement test is offered under service number FTA-0400PATT-PA.

CLICK HERE to read more about our antenna measurement capabilities.

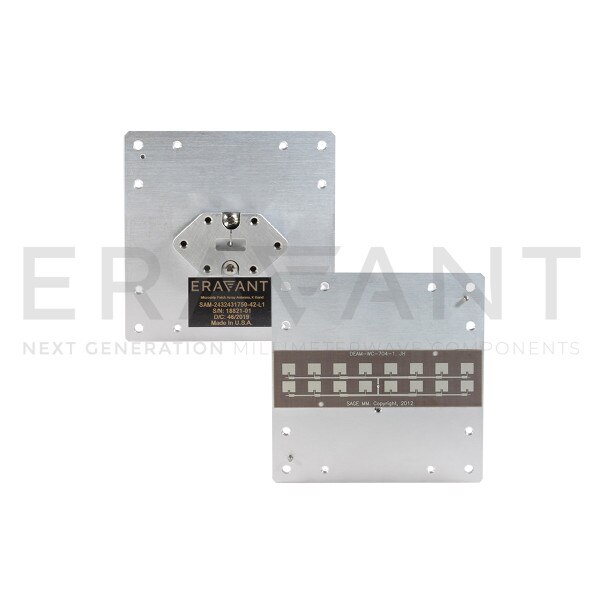

SAM-2432431750-42-L1 is a linear polarized, 24 GHz microstrip patch array antenna. The antenna implements a series-fed power distribution to achieve low sidelobe levels. The gain of the antenna is 17 dBi and its beamwidth is 50° vertically and 12° horizontally, with a better than 20 dB sidelobe suppression level. The antenna is constructed with a high performing, low loss soft microwave substrate to achieve the best performance in the class. The RF interface is a standard WR-42 waveguide with a UG-595/U flange. A female 2.92 mm connector version is offered under model number SAM-2432431750-KF-L1.
