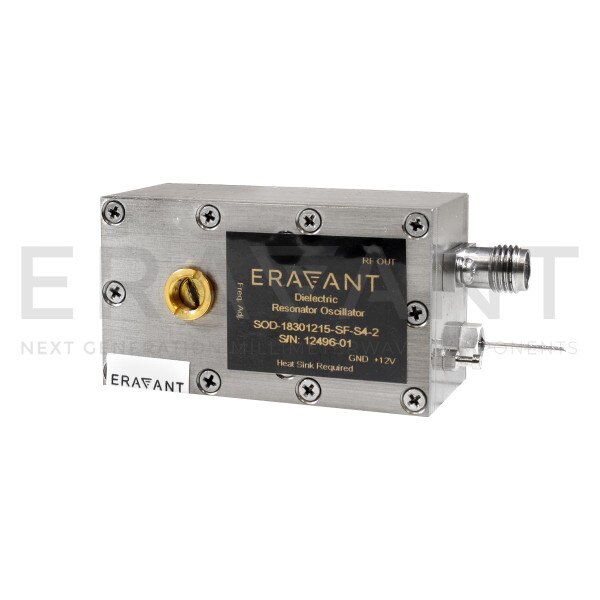

Dielectric Resonator Oscillator

17.65 GHz, ±50 MHz Tuning Range, +15 dBm Output Power, SMA (F)
SKU:SOD-18301215-SF-S4-2
Availability:Contact Us for Quote
SOD-18301215-SF-S4-2 is a mechanically tuned, dielectric resonator oscillator with a center frequency of 17.65 GHz and a mechanical tuning range of ±50 MHz. The oscillator delivers a nominal output power of +15 dBm with a low phase noise and harmonic emissions. The oscillator takes a +12 VDC/380 mA DC bias. The RF output is equipped with a female SMA connector.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Center Frequency17.65 GHz
Output Power+15 dBm
Mechanical Tuning Range±50 MHz
Phase Noise-85 dBc/Hz @ 100 KHz Offset
Spurious-70 dBc
Harmonics-20 dBc
Bias+12 VDC/380 mA
RF PortSMA (F)
