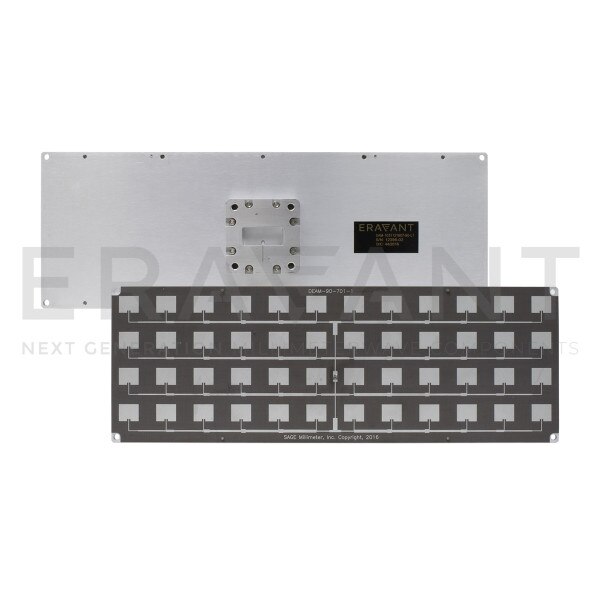

WR-90 Waveguide Microstrip Patch Array Antenna

16 dBi Gain, 10.35 to 10.65 GHz, X-Band
SKU:SAM-1031131607-90-L1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SAM-1031131607-90-L1 is a linear polarized, 10.5 GHz microstrip patch array antenna. The antenna implements a series-fed power distribution to achieve low sidelobe levels. The antenna has a gain of 16 dBi and a beamwidth of 25 degrees vertically and 7 degrees horizontally, with a better than 7 dB side lobe suppression level. The antenna is constructed with a high performing, low loss soft microwave substrate to achieve the best performance in the class. The RF interface is a standard WR-90 waveguide version with a UG-39/U flange. A female SMA connector is offered under model number SAM-1031131607-SF-L1.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency10.35 GHz
Maximum Frequency10.65 GHz
Gain16 dBi
3 dB Beamwidth (Vertical, Horizontal)25°, 7°
Sidelobe Level-20 dB
Return Loss9 dB
PolarizationLinear
Antenna PortWR-90 Waveguide
