WR-90 Waveguide Square Horn Antenna

15 dBi Gain, 8.2 to 12.4 GHz, X-Band
SKU:SAR-1532-900-S2
Availability:Contact Us for Quote
This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0400GAIN-AA.
A 2D pattern measurement test is offered under service number FTA-0400PATT-AA.

CLICK HERE to read more about our antenna measurement capabilities.

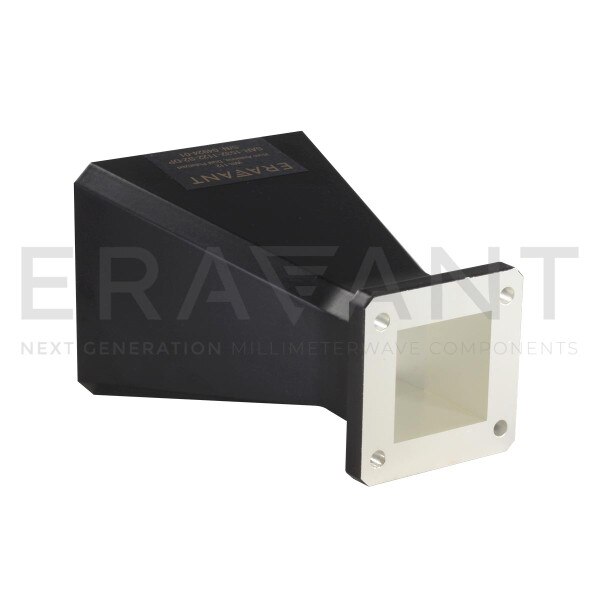

SAR-1532-900-S2 is a square horn antenna that operates from 8.2 GHz to 12.4 GHz. The antenna offers 15 dBi nominal gain and a typical half power beamwidth of 22 degrees on the E-plane and 32 degrees on the H-plane. The antenna supports linear polarized waveforms. The input of this antenna is a 0.90" X 0.90" waveguide with UG-39/U-M flange.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency8.2 GHz
Maximum Frequency12.4 GHz
Gain15 dBi
3 dB Beamwidth, E-Plane22°
3 dB Beamwidth, H-Plane32°
Return Loss25 dB
Antenna Port0.90" x 0.90" Square WG
