WR-15 Waveguide Conical Horn Antenna

15 dBi Gain, 58 to 68 GHz, V-Band
SKU:SAC-1533-15-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.

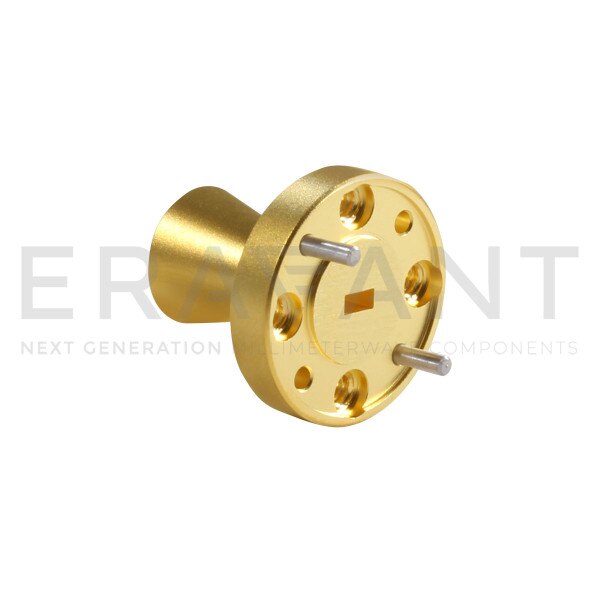

SAC-1533-15-S2 is a V-band conical horn antenna that operates from 58 to 68 GHz. The antenna offers 15 dB nominal gain and a typical half powerbeam width of 30 degrees on the E-plane and 36 degrees on the H-plane. The horn also offers typical sidelobes of -16 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear polarization. The input of this antenna is a WR-15 waveguide with UG-385/U flange.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 9$540.00
10 - 24$486.00
25 +$437.40

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency58 GHz
Maximum Frequency68 GHz
Gain15 dBi
3 dB Beamwidth, E-Plane30°
3 dB Beamwidth, H-Plane36°
Return Loss23 dB
PolarizationLinear
Antenna PortWR-15 Waveguide
