WR-04 Waveguide Conical Horn Antenna

15 dBi Gain, 170 to 260 GHz
SKU:SAC-1532-04-S2
Availability:4 to 6 Weeks ARO

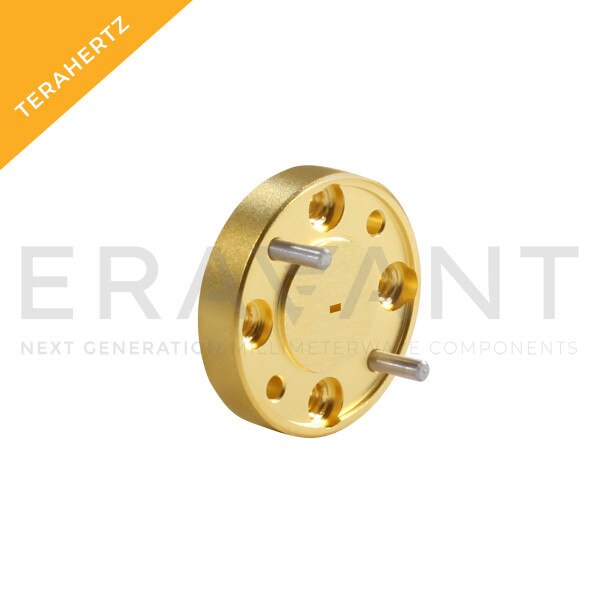

SAC-1532-04-S2 is a conical horn antenna with a WR-04 rectangular waveguide interface that operates from 170 to 260 GHz. The antenna offers 15 dBi nominal gain and a typical half power beamwidth of 32 degrees on both the E-plane and H-plane. The horn also offers typical side lobes of -15 dB on the E-plane and -20 dB on the H-plane. The conical horn can support linear polarization. The RF connector of this antenna is a WR-04 waveguide with UG-387/U-M flange.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 4$1,700.00
5 - 9$1,530.00
10 +$1,377.00

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency170 GHz
Maximum Frequency260 GHz
Gain15 dBi
3 dB Beamwidth, E-Plane32°
3 dB Beamwidth, H-Plane32°
Return Loss15 dB
PolarizationLinear
Antenna PortWR-04 Waveguide
