WR-15 Waveguide Dual-Polarized Horn Antenna

15 dBi Gain, 50 to 75 GHz, 45 dB Isolation, V-Band
SKU:SAR-1532-148-S2-DP
Availability:IN STOCKPlease contact us if you need more units than what is available online.

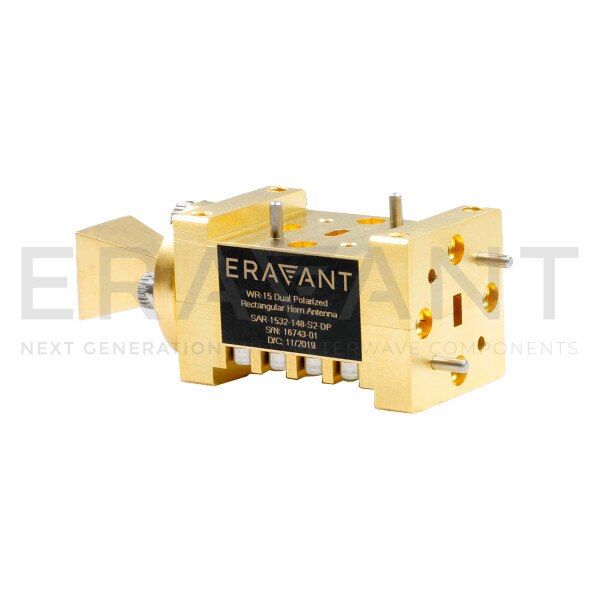

SAR-1532-148-S2-DP is a full band, dual polarized, WR-15 horn antenna assembly that covers the frequency range of 50 to 75 GHz. The antenna features an integrated orthomode transducer (OMT) that provides high port isolation. The OMT enables the antenna to separate a circular or elliptical polarized waveform into two linear, orthogonal waveforms or vice versa. The dual polarized horn also supports either vertical or horizontal polarized waveguide forms. At center frequency, the horn antenna exhibits 15 dBi nominal gain, typical half power beamwidth of 28 degrees on the E-plane and 33 degrees on the H-plane, and -15 dB sidelobe levels, respectively. The antenna exhibits 45 dB typical port isolation between the horizontal and vertical ports. The horizontal and vertical ports are WR-15 waveguides with UG-385/U flanges and 4-40 threaded holes.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency50 GHz
Maximum Frequency75 GHz
Gain15 dBi
3 dB Beamwidth, E-plane28°
3 dB Beamwidth, H-plane33°
Isolation45 dB
Return Loss15 dB
Horizontal and Vertical PortsWR-15 Waveguide
