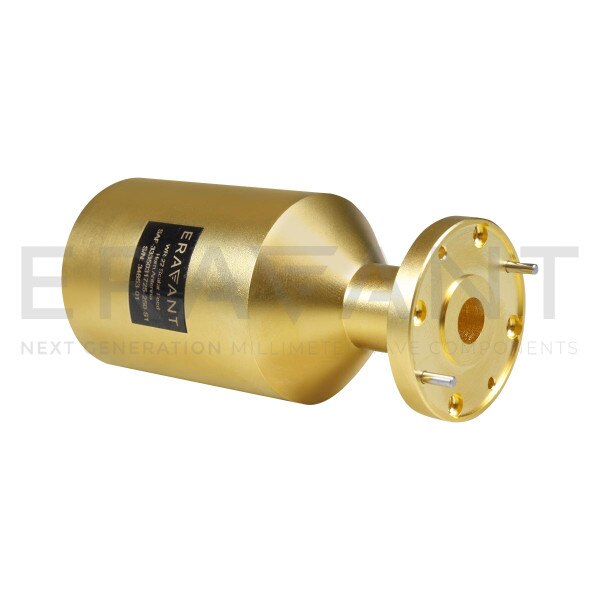

Q-Band Scalar Feed Horn Antenna
15 dBi Gain, 33 to 50 GHz, 0.250" Diameter Circular Waveguide
Bulk Pricing
Technical Details
| Minimum Frequency | 33 GHz |
| Maximum Frequency | 50 GHz |
| Gain | 15 dBi |
| 3 dB Beamwidth, E-plane | 35° |
| 3 dB Beamwidth, H-plane | 35° |
| Return Loss | 20 dB |
| Polarization | Linear and Circular |
| Antenna Port | 0.250" Dia Circular WG |
Frequently Asked Questions
Why do most Eravant scalar feed horn antenna datasheets show simulated antenna patterns instead of measured antenna patterns?
Measuring antenna pattern and gain accurately is often a challenge. It is not only due to the demand of expensive test equipment, but also the requirement of skilled and knowledgeable workers. In addition, even for simple scalar feed horn antennas, this increases lead time of the product. Eravant has conducted a study showing that today's mature EM solvers produce accurate simulated data. Coupled with the use of modern manufacturing tools, such as CNC machine centers, wire EDM, EDM Sinkers, and 3D printers, we can realize the simulated antenna with very little inaccuracy. Click here to read the study and a further explanation on simulated antenna patterns.
Does Eravant offer scalar feed horn antennas in other bands, frequencies, or other applications even though I don't see them online?
Yes! Eravant can offer scalar feed horn antennas for other bands, frequencies, and other applications as needed. Please click here to contact us for a quote for any scalar feed models you may need or email support@eravant.com.
What is the price of the Eravant Q-Band Scalar Feed Horn Antenna SAF-3335031535-250-S1?
Pricing for this product can be viewed when you login with an approved Eravant account. Click here to login or register. We are also happy to quote any models you may need. Please click here to contact us or email support@eravant.com.
What is the delivery/lead time of the Eravant Q-Band Scalar Feed Horn Antenna SAF-3335031535-250-S1?
Eravant has thousands of models in stock ready to deliver. Please click here to contact us for a quote for the Q-Band Scalar Feed Horn Antenna SAF-3335031535-250-S1 and any additional models you may need.
What is the antenna port of the Eravant Q-Band Scalar Feed Horn Antenna SAF-3335031535-250-S1?
The antenna port for model number SAF-3335031535-250-S1 Q-Band Scalar Feed Horn Antenna is a 0.250" Ø Circular Waveguide.
What are the specifications of the Eravant Q-Band Scalar Feed Horn Antenna SAF-3335031535-250-S1?
The specifications for the Eravant SAF-3335031535-250-S1 Q-Band Scalar Feed Horn Antenna are:
Minimum Frequency: 33 GHz
Maximum Frequency: 50 GHz
Gain: 15 dBi
3 dB Beamwidth, E-plane: 35°
3 dB Beamwidth, H-plane: 35°
Return Loss: 20 dB
Polarization: Linear and Circular
Antenna Port: 0.250" Dia Circular WG
