Broadband Quad-Ridged, Dual-Polarized Horn, Product Discontinued

15 dBi Gain, 26.5 to 40 GHz, 20 dB Isolation, 2.92 mm (F)
SKU:SAC-2734031517-KF-S5-DP
Availability:Product Discontinued
Select up to 4 products to compare.
Select up to 4 products to compare.
This product has been improved and is now listed as SAV-0634431050-KF-S1-QR. Read more about Limited Run Products here.

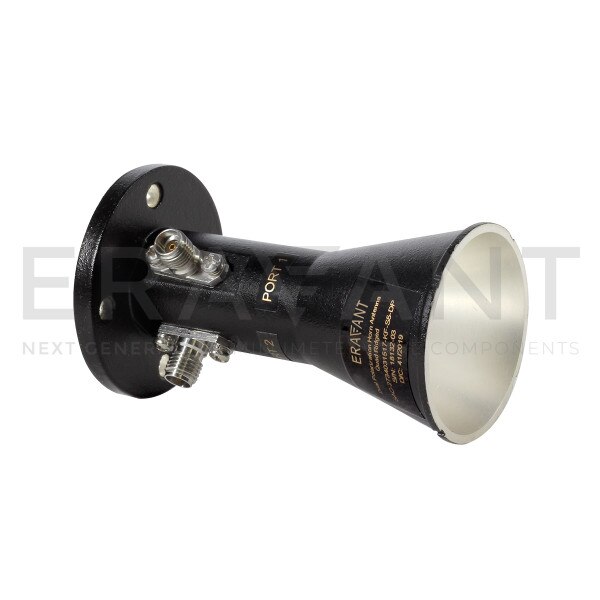

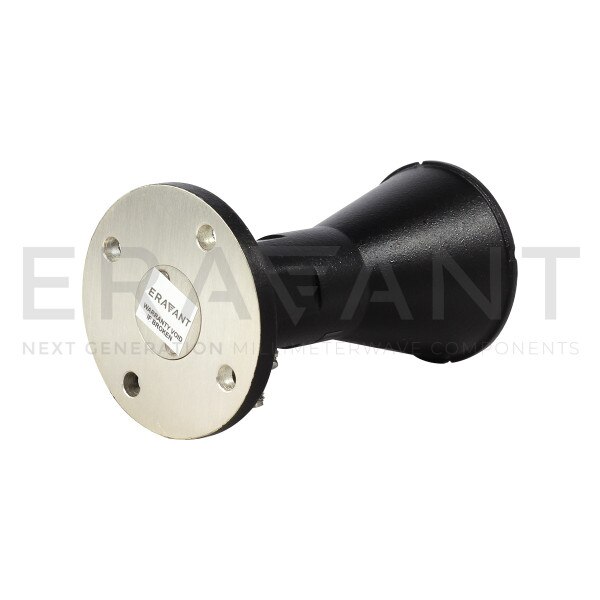

SAC-2734031517-KF-S5-DP is a quad ridged, dual polarized horn antenna that operates from 26.5 to 40 GHz. The antenna offers 15 dBi nominal gain and a half power beamwidth of 16 degrees on the E-plane and 17 degrees on the H-plane. The antenna also offers -17 dB typical sidelobe levels across the entire operating frequency. The input ports of this antenna are female 2.92 mm (K) connectors.
ECCN: EAR99
    Login to view pricing

    Bulk Pricing

    Login to view pricing

    Technical Details

    Minimum Frequency26.5 GHz
    Maximum Frequency40 GHz
    Gain15 dBi
    3 dB Beamwidth, E-plane16°
    3 dB Beamwidth, H-plane17°
    Isolation20 dB
    Return Loss7 dB
    Horizontal and Vertical Ports2.92 mm (F)

    Frequently Asked Questions

    What types of dual polarized antennas does Eravant offer and what are the differences between the offered dual polarized antenna models?

    Eravant offers two standard dual polarized antenna families, namely, quad-ridge based and orthomode transducer (OMT) based. The pros and cons and comparisons between the two types of dual polarized antennas can be found in our dual polarized antenna blog. Please click here to read further.

    Does Eravant offer dual polarized antennas in other bands, frequencies, or other applications even though I don't see them online?

    Yes! Eravant can offer dual polarized antennas for other bands, frequencies, and other applications as needed. Please click here to contact us for a quote for any dual polarized antenna models you may need or email support@eravant.com.

    Does Eravant offer conical horn antennas with 30 dBi gain or higher?

    Eravant’s rectangular and conical horn antennas are mainly designed and fabricated for low gain, say, 25 dBi or less applications. To minimize the phase error caused by aperture size increasing, the length of the horn must be increased proportionally. It is well known that the sidelobe level of the aperture antenna is mainly caused by the phase error. Theoretically, the sidelobe level reduction can be achieved by increasing the length of the horn. However, there is a practical limitation on the length (size) of the antenna. Eravant chooses to offer 25 dBi gain as maximum gain for simple rectangular and conical horn antennas to compromise the size, performance and cost. For higher gain aperture antenna requirements, Eravant recommends its SAL series lens corrected antenna. Please click here to read further our blog on rectangular horns, conical horns, lens corrected antennas, and Gaussian horns.

    What is the price of the Eravant Broadband Quad-Ridged, Dual-Polarized Horn SAC-2734031517-KF-S5-DP?

    Pricing for this product can be viewed when you login with an approved Eravant account. Click here to login or register. We are also happy to quote any models you may need. Please click here to contact us or email support@eravant.com.

    What is the delivery/lead time of the Eravant Broadband Quad-Ridged, Dual-Polarized Horn SAC-2734031517-KF-S5-DP?

    Eravant has thousands of models in stock ready to deliver. Please click here to contact us for a quote for the Broadband Quad-Ridged, Dual-Polarized Horn SAC-2734031517-KF-S5-DP and any additional models you may need.

    What is the antenna port of the Eravant Broadband Quad-Ridged, Dual-Polarized Horn SAC-2734031517-KF-S5-DP?

    The antenna port for model number SAC-2734031517-KF-S5-DP Broadband Quad-Ridged, Dual-Polarized Horn is 2.92 mm (K) (F).

    What are the specifications of the Eravant Broadband Quad-Ridged, Dual-Polarized Horn SAC-2734031517-KF-S5-DP?

    The specifications for the Eravant SAC-2734031517-KF-S5-DP Broadband Quad-Ridged, Dual-Polarized Horn are:
    Minimum Frequency: 26.5 GHz
    Maximum Frequency: 40 GHz
    Gain: 15 dBi
    3 dB Beamwidth, E-plane: 16°
    3 dB Beamwidth, H-plane: 17°
    Isolation: 20 dB
    Return Loss: 7 dB
    Horizontal and Vertical Ports: 2.92 mm (F)
