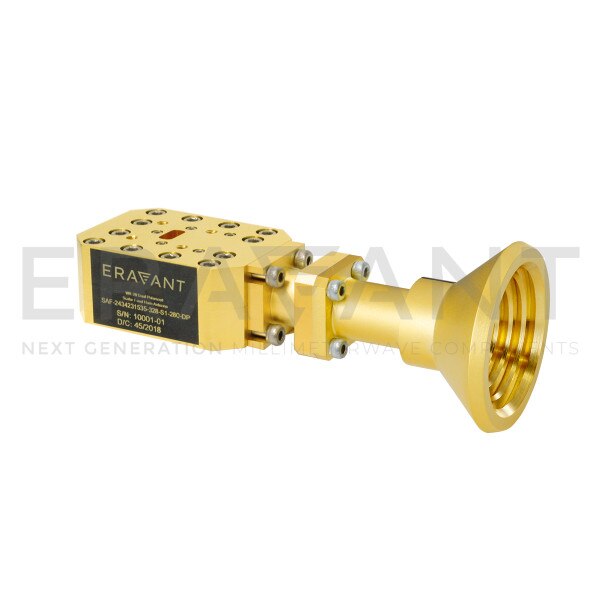

WR-28 Dual-Polarized Scalar Feed Horn Antenna

15 dBi Gain, 24 to 42 GHz, 35 dB Isolation
SKU:SAF-2434231535-328-S1-280-DP
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SAF-2434231535-328-S1-280-DP is a dual polarized, WR-28 scalar feed horn antenna assembly that covers several popular 5G bands in the frequency range of 24 to 42 GHz. The antenna features an integrated orthomode transducer (OMT) that provides high port isolation and cross-polarization cancellation and a broad band scalar horn that provides low sidelobe levels. The OMT enables the antenna to separate a circular or elliptical polarized waveform into two linear, orthogonal waveforms or vice versa. The dual polarized horn also supports either vertical or horizontal polarized waveguide forms with more than 30 dB cross polarization rejections. At center frequency, the horn antenna exhibits 15 dBi nominal gain and a typical half power beamwidth of 35 degrees and -25 dB sidelobe levels, respectively. The antenna exhibits 35 dB typical port isolation between the horizontal and vertical ports. The horizontal and vertical ports are WR-28 waveguides with UG-599/U flanges and 4-40 threaded holes.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 1$5,300.00
2 - 2$5,035.00
3 +$4,783.25

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency24 GHz
Maximum Frequency42 GHz
Gain15 dBi
3 dB Beamwidth, E-plane (33 GHz)35°
3 dB Beamwidth, H-plane (33 GHz)35°
Isolation35 dB
Return Loss25 dB
Horizontal and Vertical PortsWR-28 Waveguide
