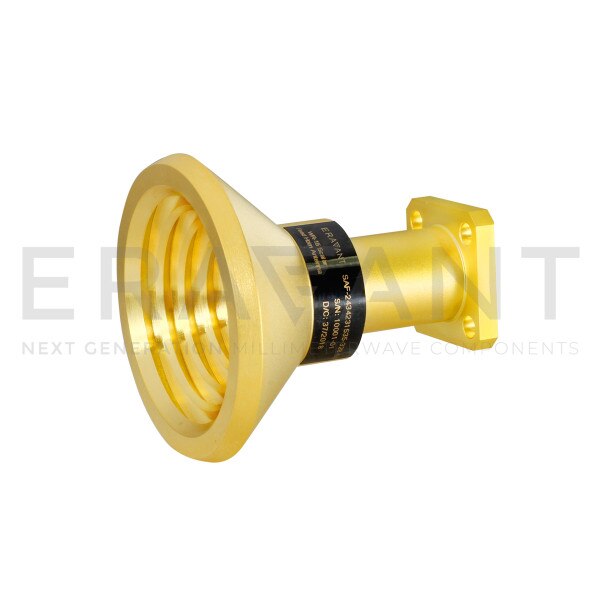

Ka-Band Scalar Feed Horn Antenna

15 dBi Gain, 24 to 42 GHz, 0.328" Diameter Circular Waveguide
SKU:SAF-2434231535-328-S1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SAF-2434231535-328-S1 is a Ka-band scalar feed horn antenna that operates from 24 to 42 GHz. The antenna offers a 15 dBi nominal gain, 35 degree typical half power beamwidth. The nominal side lobe levels are -25 dB or lower. The scalar feed horn is equipped with a 0.328” diameter circular waveguide with UG-599/U compatible flange that supports both linear and circular polarized waveforms. A rectangular waveguide port configuration that only supports linear polarization is available under a different model number. A dual-polarized configuration with an integrated orthomode transducer is available under the model SAF-2434231535-328-S1-280-DP.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 2$2,900.00
3 - 4$2,755.00
5 +$2,617.25

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency24 GHz
Maximum Frequency42 GHz
Gain15 dBi
3 dB Beamwidth, E-plane35°
3 dB Beamwidth, H-plane35°
Return Loss15 dB
PolarizationLinear and Circular
Antenna Port0.328" Dia Circular WG
