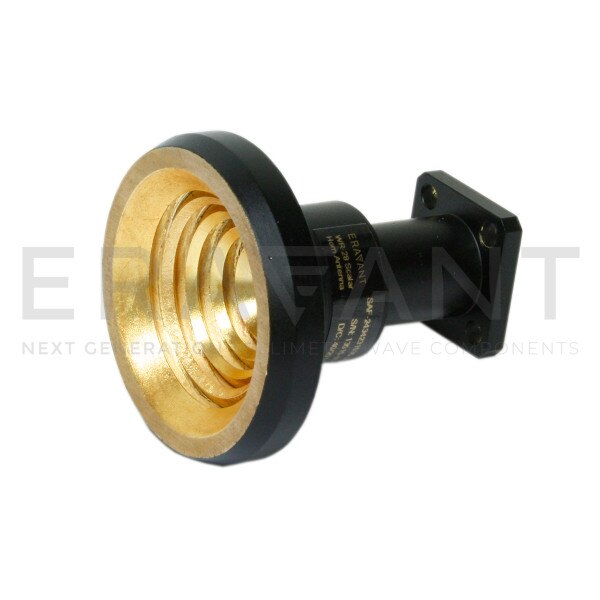

Ka-Band Scalar Feed Horn Antenna

15 dBi Gain, 24 to 40 GHz, 0.358" Diameter Circular Waveguide
SKU:SAF-2434031535-358-X1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SAF-2434031535-358-X1 is a Ka-band scalar feed horn antenna that operates from 24 to 40 GHz. The antenna offers a 15 dB nominal gain, 35 degree typical half power beamwidth. The nominal sidelobe levels are -25 dB or lower. The scalar feed horn is equipped with a 0.358" diameter circular waveguide with UG381/U-M flange that supports both linear and circular polarized waveforms. A rectangular waveguide port configuration that only supports linear polarization is available under a different model number.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 4$2,400.00
5 - 9$2,160.00
10 +$1,944.00

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency24 GHz
Maximum Frequency40 GHz
Gain15 dBi
3 dB Beamwidth, E-plane35°
3 dB Beamwidth, H-plane35°
Return Loss20 dB
PolarizationLinear and Circular
Antenna Port0.358" Dia Circular WG
