Broadband Quad-Ridged, Dual-Polarized Horn

15 dBi Gain, 18 to 32 GHz, 20 dB Isolation, 2.92 mm (F)
SKU:SAC-1833231516-KF-S5-DP
Availability:IN STOCKPlease contact us if you need more units than what is available online.

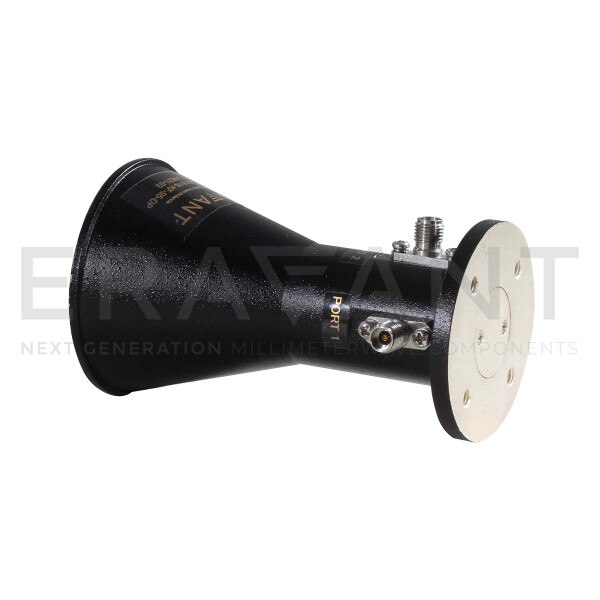

SAC-1833231516-KF-S5-DP is a quad ridged, dual polarized horn antenna that operates from 18 to 32 GHz. The antenna offers 15 dBi nominal gain and a half power beamwidth of 18 degrees on the E-plane and 13 degrees on the H-plane. The antenna also offers -19 dB typical sidelobe level on the E-plane and -31 dB on the H-plane across the entire operating frequency. The input ports of this antenna are female 2.92 mm (K) connectors.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 2 $2,650.00
3 - 4 $2,517.50
5 - 9 $2,391.63

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency18 GHz
Maximum Frequency32 GHz
Gain15 dBi
3 dB Beamwidth, E-plane18°
3 dB Beamwidth, H-plane13°
Isolation20 dB
Return Loss7 dB
Horizontal and Vertical Ports2.92 mm (F)
