Ku-Band Microstrip Patch Array Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0400GAIN-PA.
A 2D pattern measurement test is offered under service number FTA-0400PATT-PA.

CLICK HERE to read more about our antenna measurement capabilities.

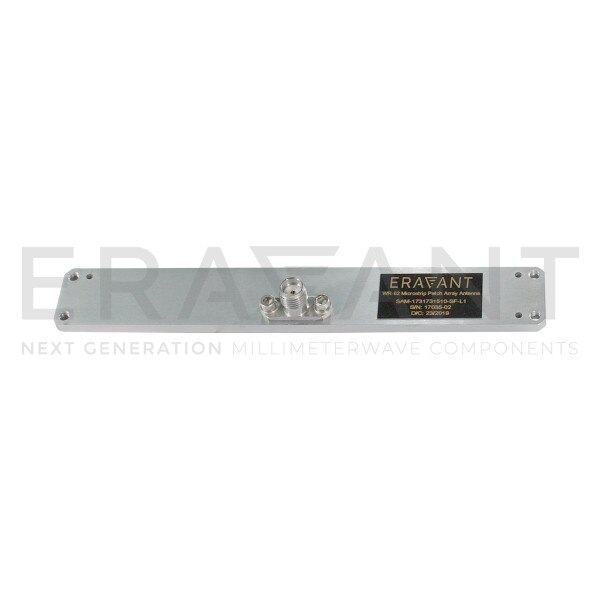

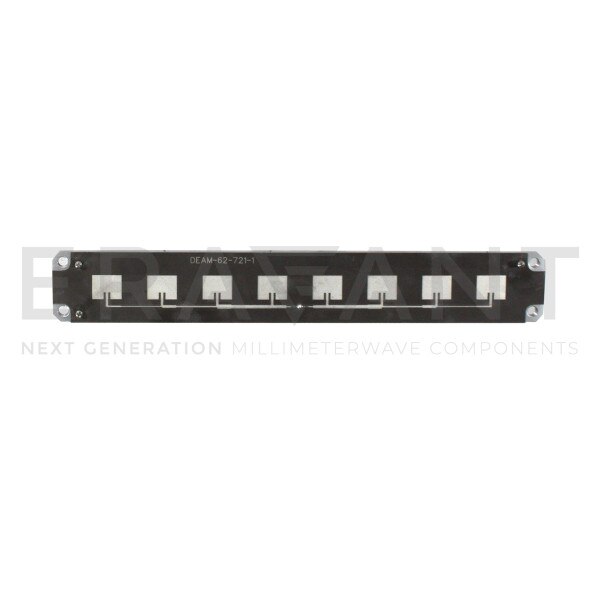

SAM-1731731510-SF-L1 is a linear polarized, 17.2 GHz microstrip patch array antenna. The antenna implements a series-fed power distribution to achieve low side lobe levels. The antenna has a gain of 15 dBi and a beamwidth of 75 degrees vertically and 10 degrees horizontally, with a -15 dB side lobe suppression level. The antenna is constructed with a high performing, low loss soft microwave substrate to achieve the best performance in the class. The RF interface is a SMA(F) connector.
