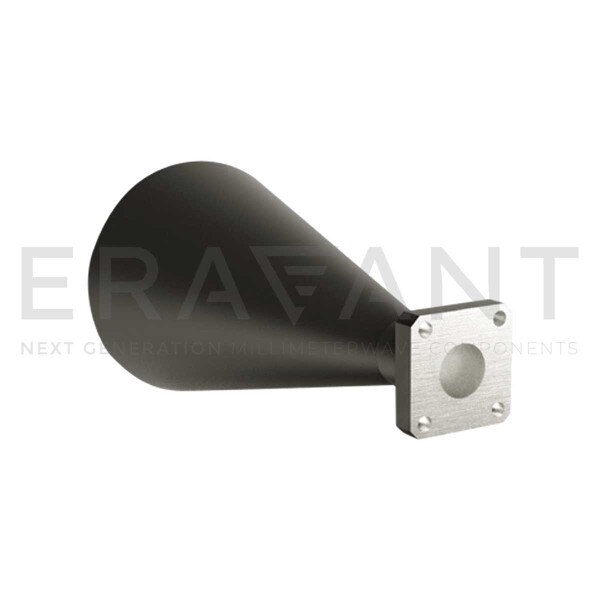

K-Band Conical Horn Antenna

15 dBi Gain, 24 to 33 GHz, 0.328" Diameter Circular Waveguide
SKU:SAC-1533-328-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SAC-1533-328-S2 is a K-band conical horn antenna that operates from 24 to 33 GHz. The antenna offers 15 dBi nominal gain and a typical half power beamwidth of 30 degrees on the E-plane and 36 degrees on the H-plane. The horn also offers typical sidelobes of -16 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.328” diameter circular waveguide with UG-595/U-M flange.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency24 GHz
Maximum Frequency33 GHz
Gain15 dBi
3 dB Beamwidth, E-Plane30°
3 dB Beamwidth, H-Plane36°
Return Loss23 dB
PolarizationLinear and Circular
Antenna Port0.328" Dia Circular WG
