Ka-Band Conical Horn Antenna

15 dBi Gain, 33 to 38.5 GHz, 0.250" Diameter Circular Waveguide
SKU:SAC-1533-250-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.

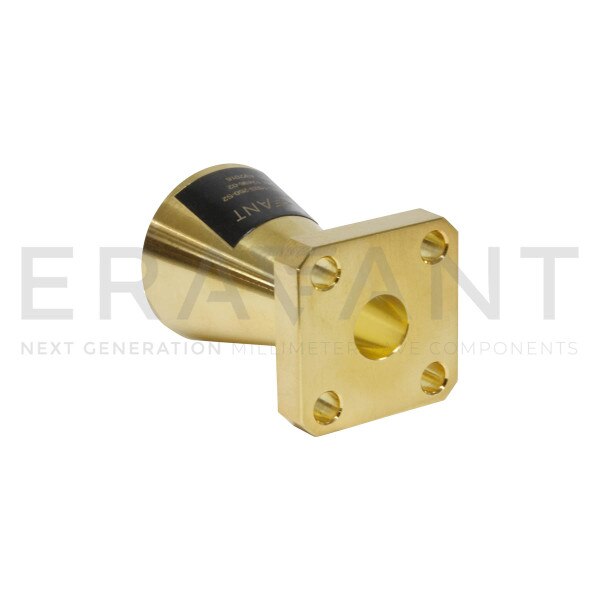

SAC-1533-250-S2 is a Ka-band conical horn antenna that operates from 33 to 38.5 GHz. The antenna offers 15 dBi nominal gain and a typical half power beamwidth of 30 degrees on the E-plane and 36 degrees on the H-plane. The horn also offers typical sidelobes of -16 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.250" diameter circular waveguide with UG-599/U-M flange.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 24$430.00
25 - 49$387.00
50 +$348.30

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency38.5 GHz
Gain15 dBi
3 dB Beamwidth, E-Plane30°
3 dB Beamwidth, H-Plane36°
Return Loss23 dB
PolarizationLinear and Circular
Antenna Port0.250" Dia Circular WG
