V-Band Rectangular Horn Antenna

15 dBi Gain, 50 to 75 GHz, 0.148" x 0.148" Square Waveguide
SKU:SAR-1532-15-S2-148
Availability:3 Days ARO

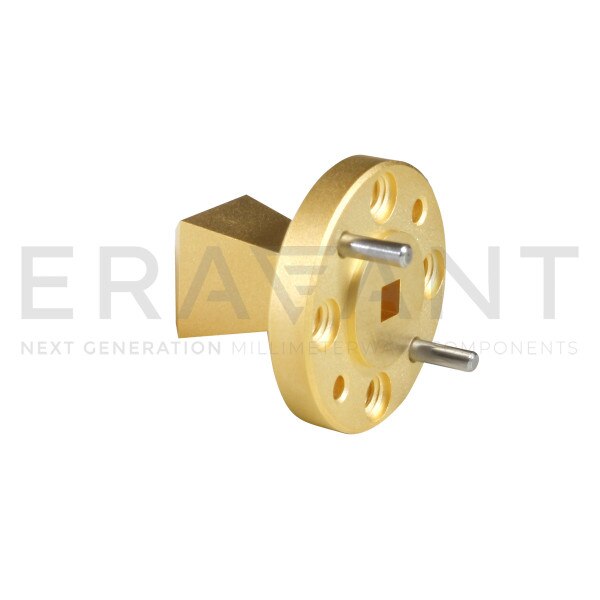

SAR-1532-15-S2-148 is a V-band pyramidal horn antenna that operates from 50 to 75 GHz. The antenna offers 15 dBi nominal gain and a typical half power beamwidth of 28 degrees on the E-plane and 33 degrees on the H-plane. The antenna supports linear polarized waveforms. The input of this antenna is a 0.148" x 0.148" square waveguide with UG-385/U-M flange.
ECCN: EAR99
Login to view pricing

Bulk Pricing

QuantityPrice
1 - 9$600.00
10 - 24$540.00
25 +$486.00

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency50 GHz
Maximum Frequency75 GHz
Gain15 dBi
3 dB Beamwidth, E-Plane28°
3 dB Beamwidth, H-Plane33°
VSWR2.0
Antenna Port0.148" x 0.148" Square WG
