WR-10 Waveguide Rectangular Horn Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-WR10GAIN-AA.
A 2D pattern measurement test is offered under service number FTA-WR10PATT-AA.

CLICK HERE to read more about our antenna measurement capabilities.

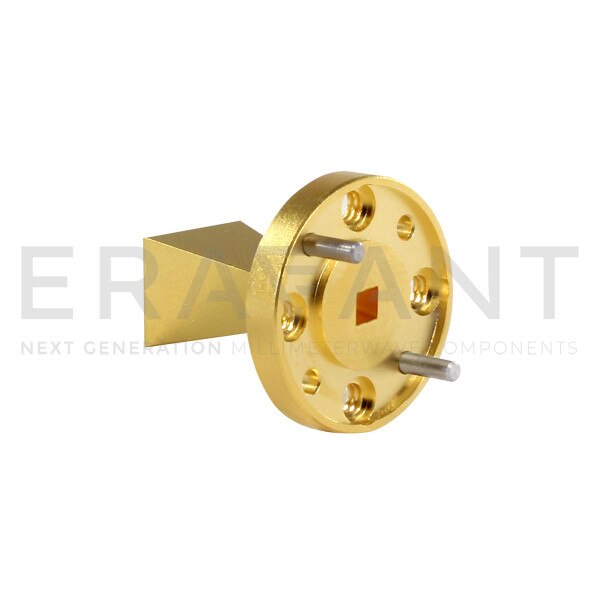

SAR-1532-100-S2 is a square horn antenna operates from 75 GHz to 100 GHz. The antenna offers 15 dBi nominal gain and a typical half power beamwidth of 22 degrees on the E-plane and 32 degrees on the H-plane. The antenna supports linear polarized waveforms. The input of this antenna is a 0.100" x 0.100" square waveguide with UG-387/U-M anti-cocking flange.
