WR-90 Waveguide Rectangular Horn Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0400GAIN-AA.
A 2D pattern measurement test is offered under service number FTA-0400PATT-AA.

CLICK HERE to read more about our antenna measurement capabilities.

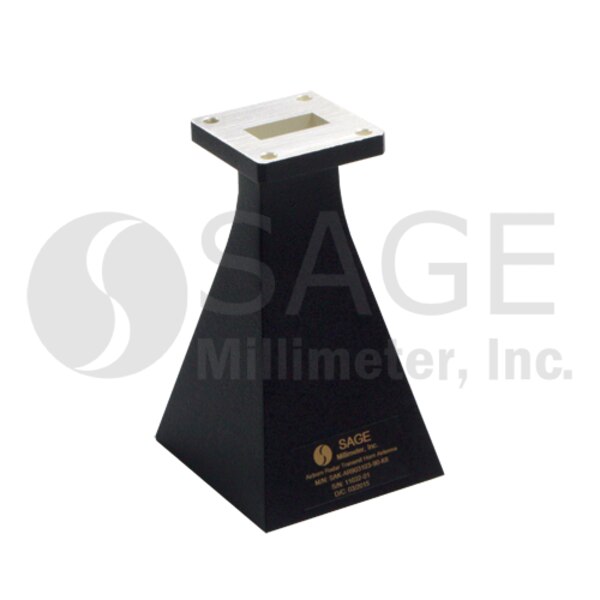

SAK-AR903103-90-C6 is a custom built X-band rectangular antenna. At center frequency, the antenna delivers a typical gain of 15.3 dBi and a half power beam width of 25 degrees vertically and 35 degrees horizontally. The cross polarization of the antenna is 35 dB or better across the operation range of 9.0 to 10.2 GHz and the typical return loss is 18 dB. This antenna is equipped with a WR-90 rectangular waveguide and UG-39/U flange as its input port.
