G-Band Externally Biased Balanced Mixer, Product Discontinued

140 to 220 GHz, DC to 40 GHz IF, +3 dBm LO Power, WR-05 Waveguide
SKU:SFB-05-E2
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This product has been improved and is now listed as SFB-05-E9. Read more about Limited Run Products here.

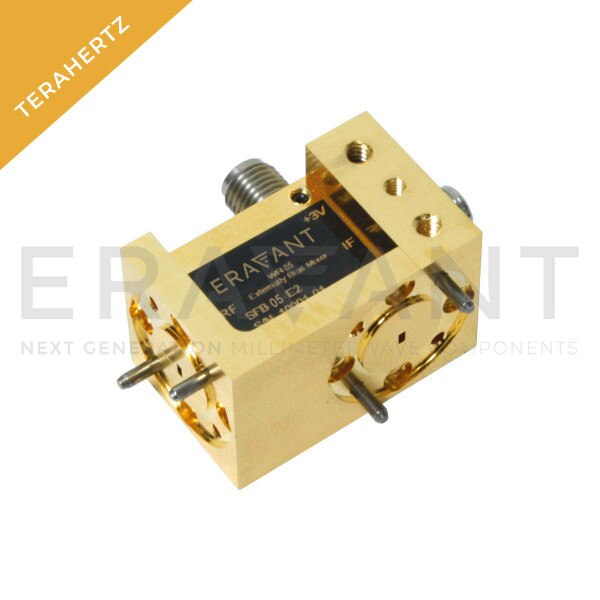

SFB-05-E2 is a G-Band, externally biased balanced mixer. The mixer supports the full waveguide band operation for both LO and RF frequencies from 140 to 220 GHz with an extremely broad IF output from DC to 40 GHz. The mixer offers a typical conversion loss of 13 dB. The externally biased mixer is used when high LO power is not available. Externally biased mixer works with low local oscillator (LO) power of 0 to +5 dBm when external bias of +5 VDC is applied. As a trade-off, LO to RF isolation is lower compared to non-biased mixers.

To prevent damage due to accidental over-bias or reverse bias, voltage regulator M/N SOR-05-SM-R1 is highly recommended.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency140 GHz
Maximum RF Frequency220 GHz
Minimum LO Frequency140 GHz
Maximum LO Frequency220 GHz
Minimum IF FrequencyDC
Maximum IF Frequency40 GHz
LO Pumping Power+3 dBm
RF PortWR-05 Waveguide
