G-Band Balanced Mixer

140 to 220 GHz, DC to 40 GHz IF, +13 dBm LO Power, WR-05 Waveguide
Availability:IN STOCKPlease contact us if you need more units than what is available online.

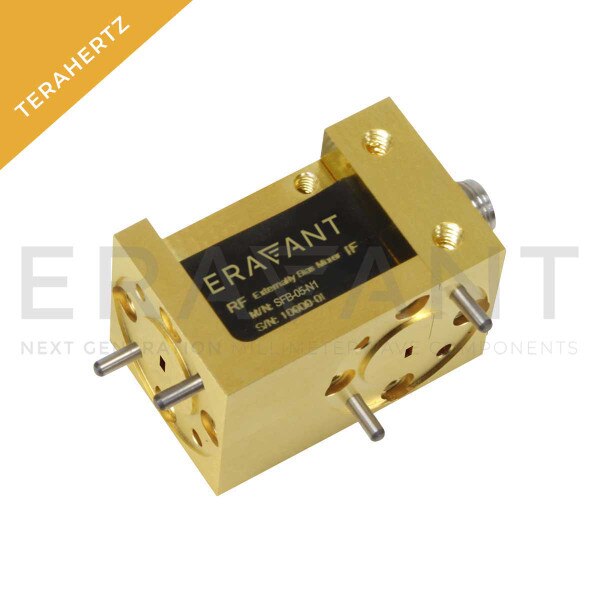

SFB-05-N1 is a G-Band balanced mixer that utilizes high performance GaAs Schottky beam-lead diodes and a balanced circuit configuration to offer superior RF performance. The mixer supports the full waveguide band operation for both LO and RF frequencies from 140 to 220 GHz with an extremely broad IF output from DC to 40 GHz. The mixer offers a conversion loss of 13 dB typical and a high RF to LO port isolation of 30 dB nominally. The typical input P-1 dB is -3 dBm.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency140 GHz
Maximum RF Frequency220 GHz
Minimum LO Frequency140 GHz
Maximum LO Frequency220 GHz
Minimum IF FrequencyDC
Maximum IF Frequency40 GHz
LO Pumping Power+13 dBm
RF PortWR-05 Waveguide
