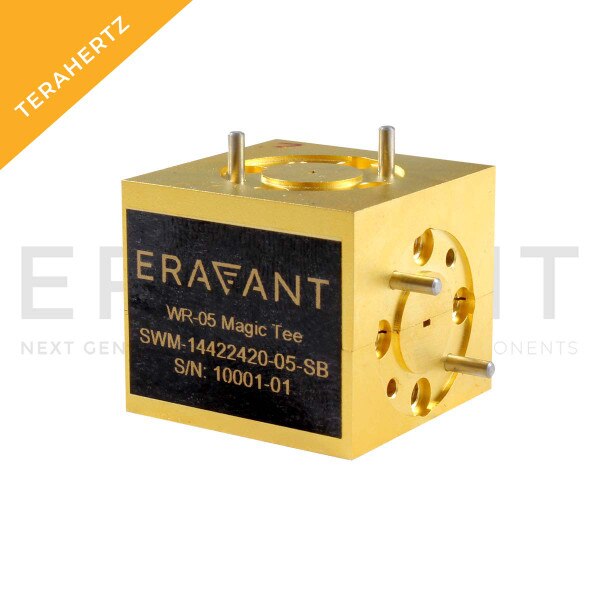

G-Band Magic Tee

140 to 220 GHz, 30 dB Sum and Difference Port Isolation, 20 dB Collinear Port Isolation, WR-05
SKU:SWM-14422420-05-SB
Availability:4 to 6 Weeks ARO
SWM-14422420-05-SB is a G-band magic tee that covers the frequency range of 140 to 220 GHz. This magic tee is a four-port hybrid coupler and/or power divider with two collinear arms, an E-plane (difference) arm, and an H-plane (sum) arm. The magic tee offers a 1.7 dB nominal insertion loss and high isolation between the two collinear arms and between the sum and difference arms. All waveguide ports have standard WR-05 waveguides with UG-387/U-M anti-cocking flanges.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 4 $1,200.00
5 - 9 $1,080.00
10 - 24 $972.00

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency140 GHz
Maximum Frequency220 GHz
Insertion Loss1.7 dB
Isolation, Sum and Difference Ports30 dB
Isolation, Collinear Ports20 dB
Magic Tee TypeSplit-Block
Sum and Difference PortsWR-05 WG
Collinear PortsWR-05 WG
