3-Port Directional Coupler

140 to 220 GHz, 10 dB Coupling, 25 dB Directivity, WR-05 Waveguide, G-Band
Availability:IN STOCKPlease contact us if you need more units than what is available online.

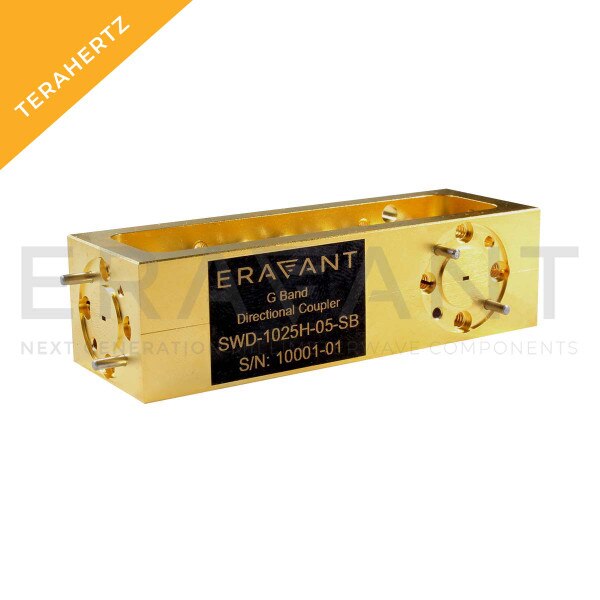

SWD-1025H-05-SB is a G-band, three-port waveguide directional coupler that delivers a 10 dB nominal coupling level and 25 dB typical directivity across the full waveguide band from 140 to 220 GHz. The three-port coupler uses a traditional multi-hole and split block design to achieve a flat coupling level, and low insertion loss. The interfaces of the coupler are WR-05 waveguides with UG-387/U-M anti-cocking flanges. Custom coupling levels are available under different model numbers.
Login to view pricing

Bulk Pricing

Quantity Price
1 - 4 $2,100.00
5 - 9 $1,890.00
10 - 24 $1,701.00

Bulk Availability


Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency140 GHz
Maximum Frequency220 GHz
Insertion Loss3.0 dB
Coupling10 dB
Directivity25 dB
Return Loss18 dB
Coupler Type3-Port Multi-hole, Split-block
RF PortsWR-05 WG
