G-Band Low Noise Amplifier

140 to 200 GHz, 15 dB Gain, 7 dB Noise Figure, In-line WR-05 Waveguide

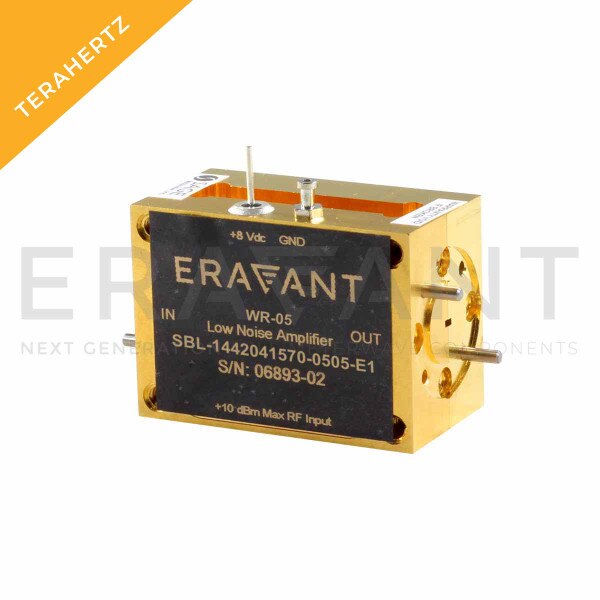

SBL-1442041570-0505-E1 is a G-band low noise amplifier with a typical small signal gain of 15 dB and a nominal noise figure of 7.0 dB across the frequency range of 140 to 200 GHz. The DC power requirement for the amplifier is +8 VDC/40 mA. The input and output port configuration offers an inline structure with WR-05 waveguides and UG-387/U-M anti-cocking flanges.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
ECCN: 3A001.b.4
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency140 GHz
Maximum Frequency200 GHz
Gain15 dB
Noise Figure7.0 dB
P1dB-5 dBm
Input Return Loss6 dB
Output Return Loss10 dB
DC Bias+8 VDC/40 mA
RF Input/OutputWR-05 Waveguide
