Broadband Dual-Polarized Quad-Ridged Horn, Weather Resistant

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0400GAIN-QR.
A 2D pattern measurement test is offered under service number FTA-0400PATT-QR.

CLICK HERE to read more about our antenna measurement capabilities.

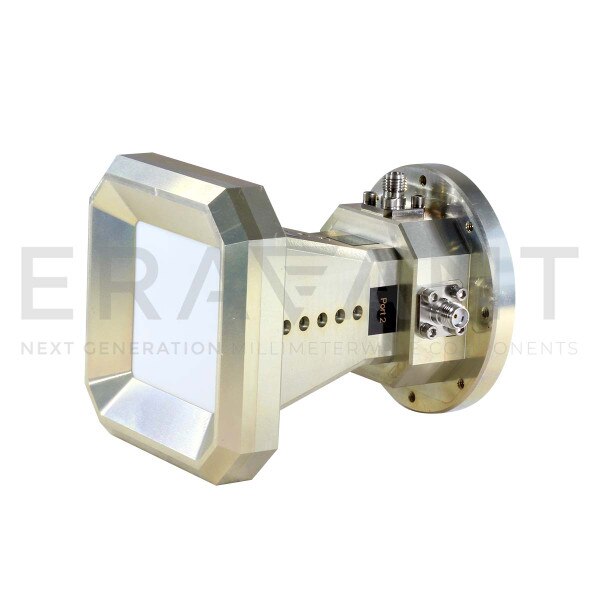

SAV-0632531431-SF-S1-QR-WR is a weather resistant quad-ridged horn antenna that operates from 6 to 24.5 GHz. The antenna offers a typical gain of 14 dBi and a nominal 3 dB beamwidth of 26° for the E-plane and 36° for the H-plane, respectively. The antenna supports both circular and linear polarized waveforms. The antenna features eight 4-40 threaded holes and one 1/4-20 threaded hole for mounting. The antenna ports are two female SMA connectors. The mechanical configuration is designed for weather resistance, with features such as an integrated radome, O-ring sealed coax connectors and assembly screws, and a corrosion resistant chemical film surface treatment.
