Broadband Dual-Polarized Quad-Ridged Horn, Product Discontinued

14 dBi Gain, 6 to 24.5 GHz, 25 dB Isolation, SMA (F)
SKU:SAV-0632531431-SF-U3-QR
Availability:Contact Us for Quote
This product has been improved and is now listed as SAV-0632531431-SF-U6-QR-RD. Read more about Limited Run Products here.

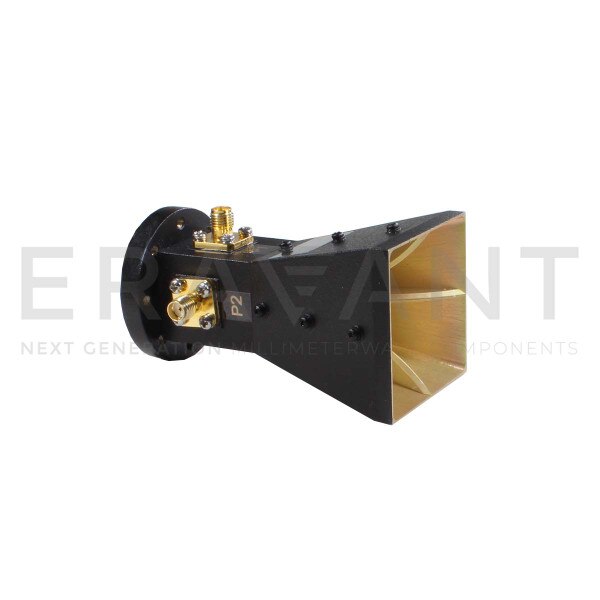

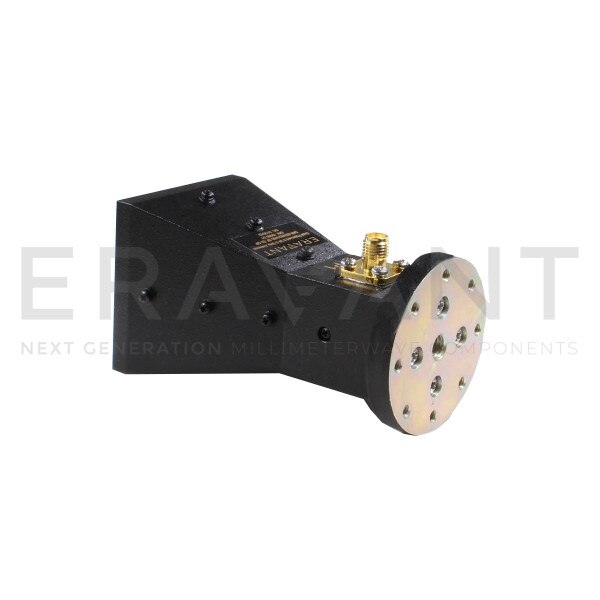

SAV-0632531431-SF-U3-QR is a broadband dual quad-ridged horn antenna that operates from 6 to 24.5 GHz. The quad-ridged horn antenna offers a typical gain of 14 dBi and a nominal 3 dB beamwidth of 26˚ for the E-plane and 36˚ for the H-plane, respectively. The broadband dual quad-ridged horn antenna supports both circular and linear polarized waveforms. The antenna features eight M3 threaded holes and one M6 threaded hole for mounting. The antenna ports are two female SMA connectors.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency6 GHz
Maximum Frequency24.5 GHz
Gain14 dbi
3 dB Beamwidth, E-plane26°
3 dB Beamwidth, H-plane36°
Isolation25 dB
Return Loss8 dB
Horizontal and Vertical PortSMA (F)
