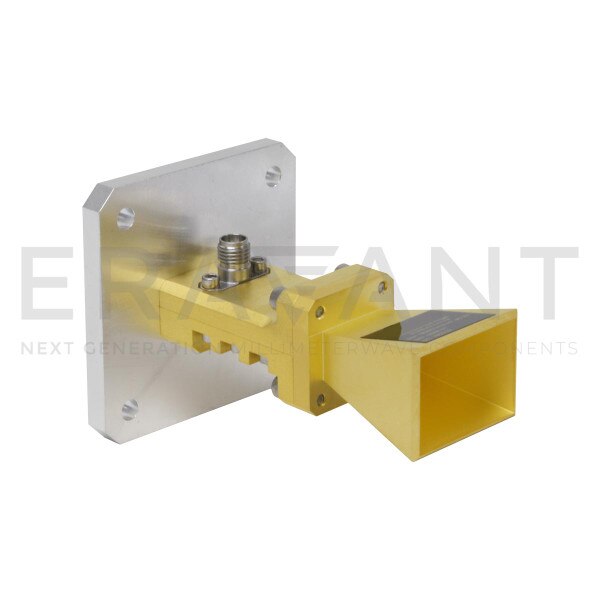

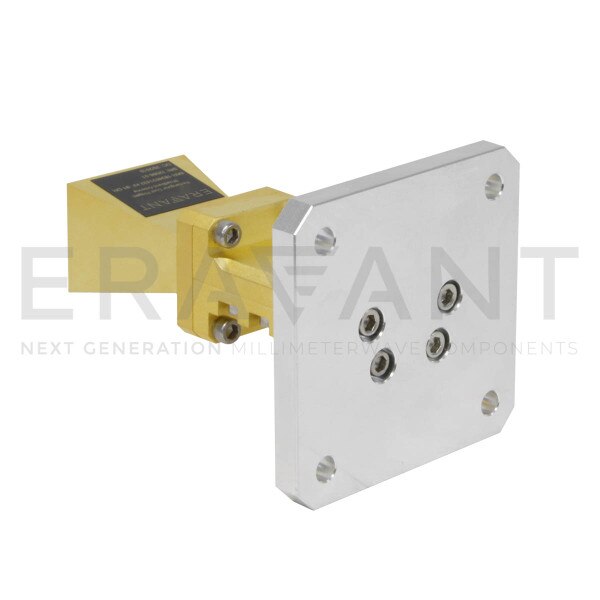

Double-Ridged Rectangular Horn Antenna

12 to 17 dBi Gain, 18 to 40 GHz, 2.92 mm (F)
SKU:SAR-1834031432-KF-S2-DR
SAR-1834031432-KF-S2-DR is a dual-ridged horn antenna that operates from 18 GHz to 40 GHz. The antenna offers 12 to 17 dBi nominal gain and a typical half power beamwidth of 20 to 43 degrees on the E-plane and 36 to 92 degrees on the H-plane. The antenna supports linear polarized waveforms. The input of this antenna is a female K connector.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency18 GHz
Maximum Frequency40 GHz
Gain14.5 dBi
3 dB Beamwidth, E-Plane31.5°
3 dB Beamwidth, H-Plane64°
Return Loss10 dB
Antenna Port2.92 mm Female
