Quad-Ridged Dual-Polarized Conical Horn Antenna

12 dBi Gain, 4 to 24 GHz, 30 dB Isolation, SMA (F)
SKU:SAC-0432431235-SF-S4-DP-QR
Availability:6 to 8 Weeks ARO

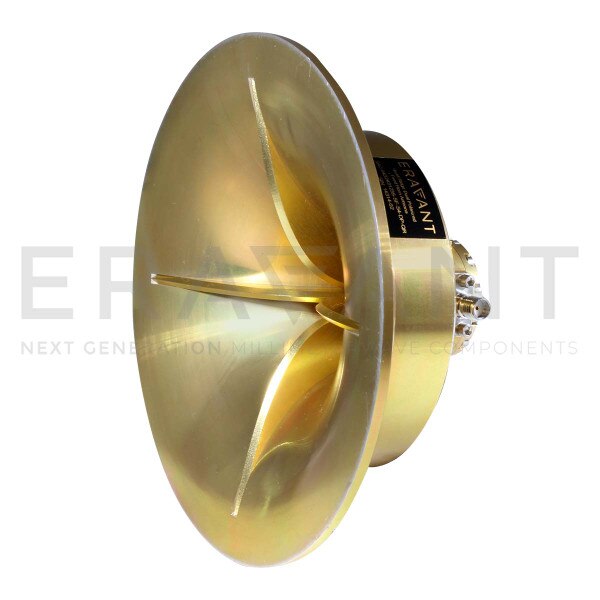

SAC-0432431235-SF-S4-DP-QR is a quad ridge dual polarized conical horn antenna that operates from 4 to 24 GHz. The antenna offers a 12 dBi nominal gain, a typical half power beamwidth of 40 degrees on the E plane and 30 degrees on the H plane at the center frequency of 14 GHz. The nominal side lobe levels are -12 dB or lower. The horn antenna is equipped with SMA(F) connectors to support both linear and circular polarized waveforms vertically and horizontally. Other antenna ports such as 2.92mm (K) or 2.4 mm connectors are available under a different model numbers. The main application of the horn is being used as a feed horn for large reflector antennas.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 2$4,400.00
3 - 4$4,180.00
5 - 9$3,971.00

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency4 GHz
Maximum Frequency24 GHz
Gain12 dBi
3 dB Beamwidth, E-plane40°
3 dB Beamwidth, H-plane30°
Isolation30 dB
Return Loss10 dB
Antenna PortsSMA (F)
