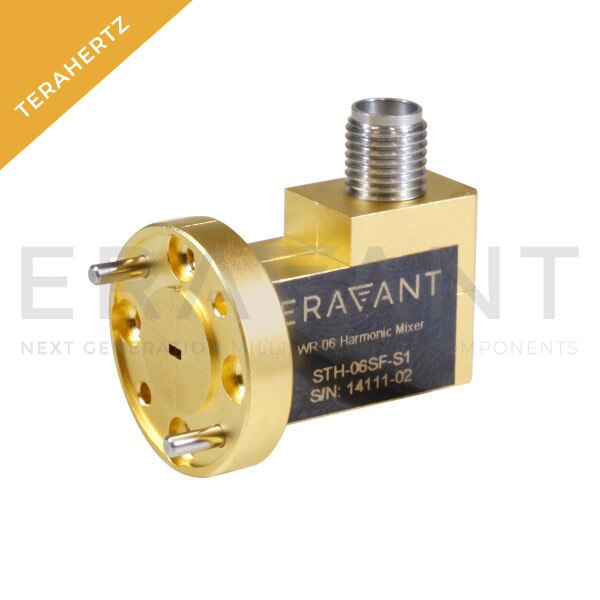

D-Band Spectrum Analyzer Harmonic Mixer

110 to 170 GHz, WR-06 Waveguide
SKU:STH-06SF-S1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
STH-06SF-S1 is a D Band harmonic mixer employing single diode and broadband circuitry to deliver low conversion loss and continuous frequency coverage for full waveguide band operations covering the frequency range of 110 to 170 GHz. The mixer extends the operation frequency of test instruments like the spectrum analyzer and frequency counter from 18 GHz or below to full D band operations. Unlike the balanced harmonic mixer, model numbers SFH-06SFSF-A3 or SFH-06SFSF-A3-2, the spectrum analyzer mixer does not have a built-in frequency diplexer. Therefore, their LO and IF ports are combined to a common coaxial port where its LO and IF signals are shared. This feature provides a convenient connection ability when used with the spectrum analyzer or frequency counter models that have a built-in diplexer, i.e., combined LO and IF port, such as the models offered by Advantest, Anritsu, Rohde & Schwarz, some Keysight models, Tektronix and National Instruments/Phase Matrix (EIP). However, the harmonic mixer can also be used for the spectrum analyzers with separate LO and IF ports if a diplexer is used.
ECCN: 3A001.b.7.a
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 2 $2,500.00
3 - 4 $2,250.00
5 - 9 $2,025.00

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency110 GHz
Maximum Frequency170 GHz
IF Minimum FrequencyDC
IF Maximum Frequency4 GHz
LO Power+13 dBm
RF Input Power-20 dBm
RF PortWR-06 Waveguide
IF and LO PortsSMA (F)
