D-Band Noise Figure and Gain Test Extenders

110 to 170 GHz, WR-06 Waveguide
SKU:STG-06-S1
Availability:Contact Us for Quote

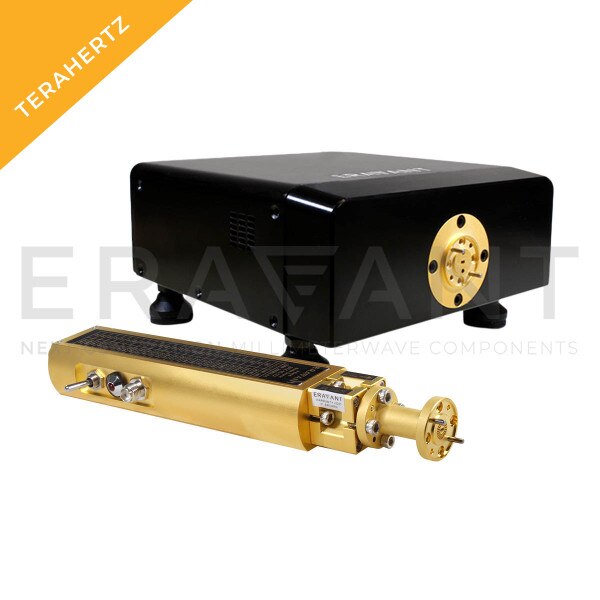

STG-06-S1 is a full D-Band noise figure and gain test extender that extends the noise and gain measurement capabilities of common and low frequency signal synthesizers and noise figure meters to the frequency range of 110 to 170 GHz. This extender is designed to interface with industry standard noise and gain test systems, such as Keysight 8970A/B and Y Factor with a spectrum analyzer. It can also interface with most noise and gain analyzers in the 10.0 MHz to 1.6 GHz frequency range.
ECCN: 3A001.b.7.c.1
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency110 GHz
Maximum RF Frequency170 GHz
Noise Source ENR12 dB
Down-converter Minimum IF Frequency10 MHz
Down-converter Maximum IF Frequency1.6 GHz
Down-converter Gain20 dB
Down-converter Noise Figure16 dB
Down-converter Bias+12 VDC/450 mA
RF PortWR-06 Waveguide
