D-Band Externally Biased Balanced Upconverter

110 to 170 GHz, DC to 40 GHz IF, +3 dBm LO Power, WR-06 Waveguide
SKU:SFU-06-E2
Availability:IN STOCKPlease contact us if you need more units than what is available online.

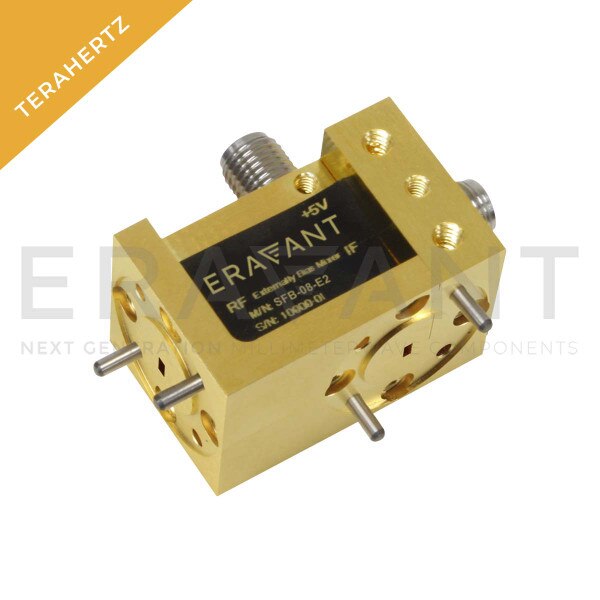

SFU-06-E2 is a D-Band, externally biased, balanced up-converter. The up-converter supports the full waveguide band operation for both LO and RF frequencies from 110 to 170 GHz with an extremely broad IF output from DC to 40 GHz. The up-converter offers a typical conversion loss of 14 dB and a high IF to LO port isolation. The main advantage of using an externally biased up-converter is that it only requires a local oscillator (LO) power of 0 to +5 dBm when a bias of +5 VDC is applied. This eliminates the need for an expensive local oscillator, making system integrations more affordable.
ECCN: 3A001.b.7.d
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 2 $3,850.00
3 - 4 $3,657.50
5 - 9 $3,474.63

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

Minimum RF Frequency110 GHz
Maximum RF Frequency170 GHz
Minimum LO Frequency110 GHz
Maximum LO Frequency170 GHz
Minimum IF FrequencyDC
Maximum IF Frequency40 GHz
LO Pumping Power+3 dBm
Conversion Loss14 dB
RF PortWR-06 Waveguide
