D-Band Low Noise Amplifier

110 to 170 GHz, 30 dB Gain, 6.5 dB Noise Figure, In-line WR-06 Waveguide
Availability:2 to 3 Weeks ARO

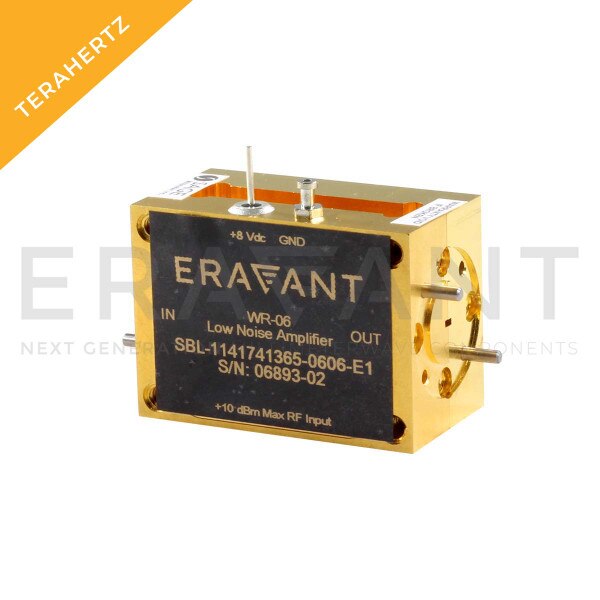

SBL-1141743065-0606-E1 is a D-band low noise amplifier with a typical small signal gain of 30 dB and a nominal noise figure of 6.5 dB across the frequency range of 110 to 170 GHz. The DC power requirement for the amplifier is +8 VDC/70 mA. The input and output port configuration offers an inline structure with WR-06 waveguides and UG-387/U-M anti-cocking flanges. Other port configurations are available under different model numbers.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
ECCN: 3A001.b.4
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency110 GHz
Maximum Frequency170 GHz
Gain30 dB
Noise Figure6.5 dB
P1dB-5 dBm
Input Return Loss6 dB
Output Return Loss6 dB
DC Bias+8 VDC/70 mA
RF Input/OutputWR-06 Waveguide
