3-Port Directional Coupler

110 to 170 GHz, 3 dB Coupling, 25 dB Directivity, WR-06 Waveguide, D-Band
Availability:1 Week ARO

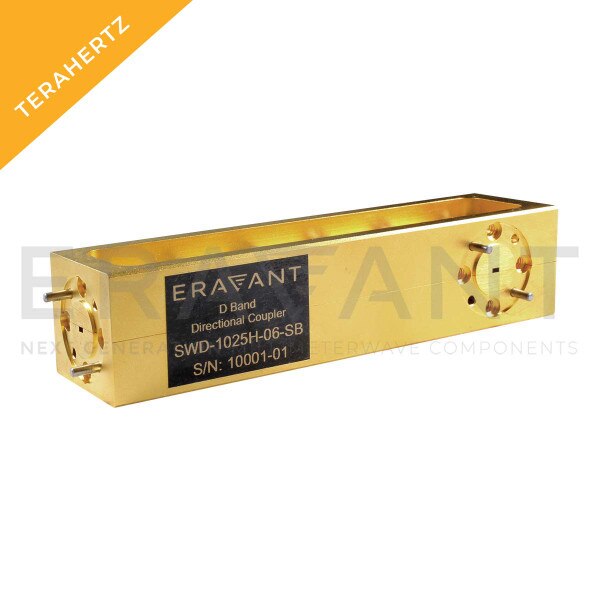

SWD-0325H-06-SB is a D band, three-port waveguide directional coupler that delivers a 3 dB nominal coupling level and 25 dB nominal directivity across the full waveguide band from 110 to 170 GHz. The three-port coupler uses a traditional multi-hole and split block design to achieve a flat coupling level, high directivity, and low insertion loss. The interfaces of the coupler are WR-06 waveguides with UG-387/U-M flanges. Other coupling levels are available under different model numbers.
Login to View Pricing

Bulk Pricing

1 - 4$1,700.00
5 - 9$1,530.00
10 - 24$1,377.00

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency110 GHz
Maximum Frequency170 GHz
Insertion Loss3 dB
Coupling3 dB
Directivity25 dB
Return Loss20 dB
Coupler Type3-Port Multi-hole, Split-block
RF PortsWR-06 WG
