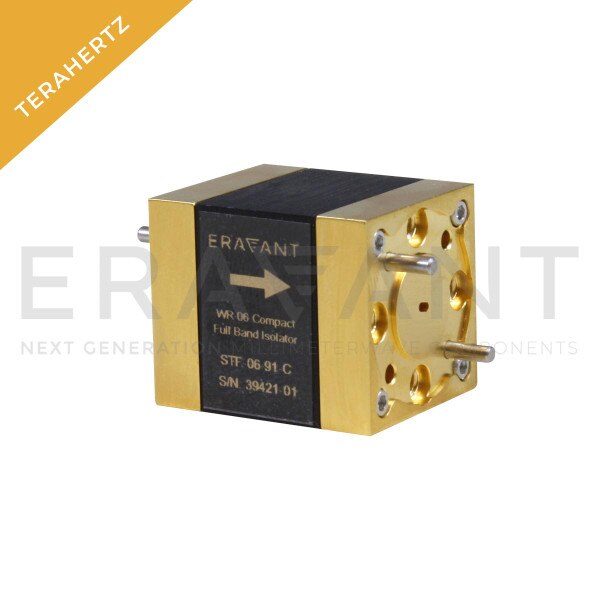

D-Band Compact Faraday Isolator, Limited Run

110 to 170 GHz, 28 dB Isolation, 3.0 dB Insertion Loss, WR-06 Waveguide, 90° Twist
SKU:STF-06-91-C
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider STF-06-91-M2 as an alternative solution. Read more about Limited Run Products here.

STF-06-91-C is a full band Faraday isolator that operates from 110 to 170 GHz. The Faraday isolator is constructed with a longitudinal, magnetized ferrite rod that causes a Faraday rotation of the incoming RF signal. The compact, robust package is ideal for system integration and testing applications and features a 90° twist between the input port and output port. The Faraday isolator offers 28 dB typical isolation and 3.0 dB nominal insertion loss with good flatness. The input and output ports are WR-06 waveguides with UG-387/U-M flanges. An in-line configuration is available under model number STF-06-S1-C.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency110 GHz
Maximum Frequency170 GHz
Insertion Loss3 dB
Isolation28 dB
Return Loss15 dB
Power Handling1 W
RF PortWR-06 Waveguide
ConfigurationCompact
