2-Way Right Angle Power Divider

110 to 170 GHz, 20 dB Port Isolation, WR-06 Waveguide, D-Band
Availability:2 to 3 Weeks ARO

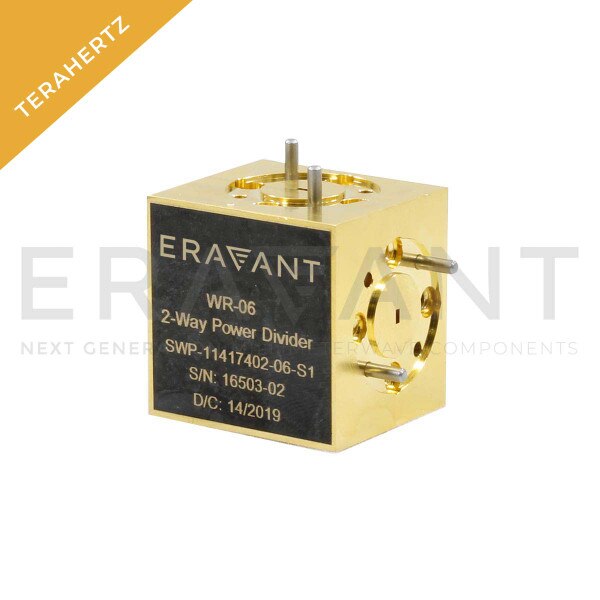

SWP-11417402-06-S1 is a WR-06, 2-way power divider that operates from 110 to 170 GHz. The power divider offers a typical insertion loss of 1.5 dB and typical isolation of 20 dB. All ports are well-balanced and in-phase for power dividing or combining applications across the band. The power divider is configured as a right-angle package with WR-06 waveguides and UG-387/U-M anti-cocking flanges at all ports. An inline, 2-way configuration is offered under model SWP-11417402-06-E1. Other power splitting options, such as 4-way, 8-way, and 16-way division, are available for both right-angle and inline configurations under different model numbers.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency110 GHz
Maximum Frequency170 GHz
Insertion Loss1.5 dB
Port Isolation20 dB
Amplitude Imbalance±0.6 dB
Input/Output Return Loss20 dB
Power Division2 Way
ConfigurationRight Angle (90°)
Input/Output PortsWR-06 WG
