D-Band Low Noise Amplifier

110 to 170 GHz, 13 dB Gain, 6.5 dB Noise Figure, In-line WR-06 Waveguide
Availability:IN STOCKPlease contact us if you need more units than what is available online.

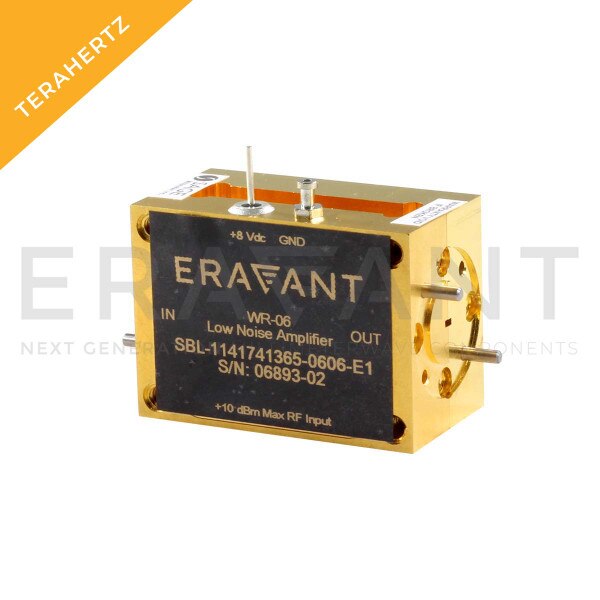

SBL-1141741365-0606-E1 is a D-band low noise amplifier with a typical small signal gain of 13 dB and a nominal noise figure of 6.5 dB across the frequency range of 110 to 170 GHz. The DC power requirement for the amplifier is +8 VDC/40 mA. The input and output port configuration offers an inline structure with WR-06 waveguides and UG-387/U-M anti-cocking flanges. Other port configurations are available under different model numbers.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
ECCN: 3A001.b.4
Login to view pricing

Bulk Pricing

Quantity Price
1 $7,250.00
2 $6,887.50
3 - 4 $6,543.13

Bulk Availability


Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency110 GHz
Maximum Frequency170 GHz
Gain13 dB
Noise Figure6.5 dB
P1dB-5 dBm
Input Return Loss6 dB
Output Return Loss6 dB
DC Bias+8 VDC/40 mA
RF Input/OutputWR-06 Waveguide
