3-Port Directional Coupler

110 to 170 GHz, 10 dB Coupling, 25 dB Directivity, WR-06 Waveguide, D-Band
SKU:SWD-1025H-06-SB
Availability:4 to 6 Weeks ARO

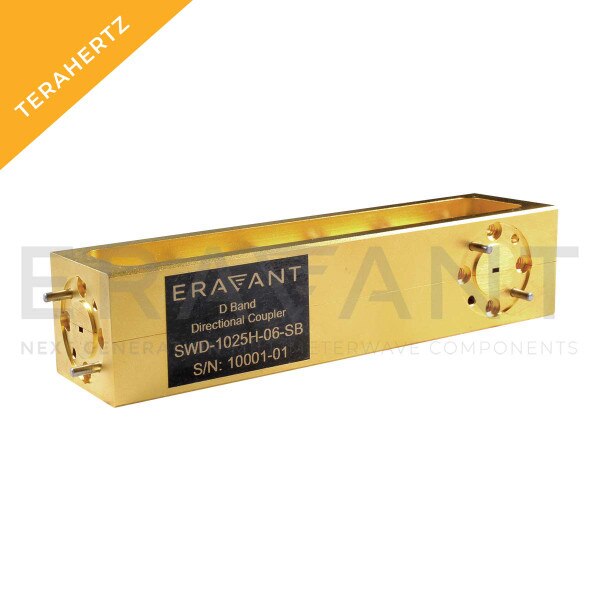

SWD-1025H-06-SB is a D band, three-port waveguide directional coupler that delivers a 10 dB nominal coupling level and 25 dB nominal directivity across the full waveguide band from 110 to 170 GHz. The three-port coupler uses a traditional multi-hole and split block design to achieve a flat coupling level, high directivity, and low insertion loss. The interfaces of the coupler are WR-06 waveguides with UG-387/U-M flanges. Other coupling levels are available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 4 $1,700.00
5 - 9 $1,530.00
10 - 24 $1,377.00

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency110 GHz
Maximum Frequency170 GHz
Insertion Loss3 dB
Coupling10 dB
Directivity25 dB
VSWR1.2
Coupler Type3-Port Multi-hole, Split-block
RF PortsWR-06 WG
